Introduction to Automotive CAN-BUS System Trainer

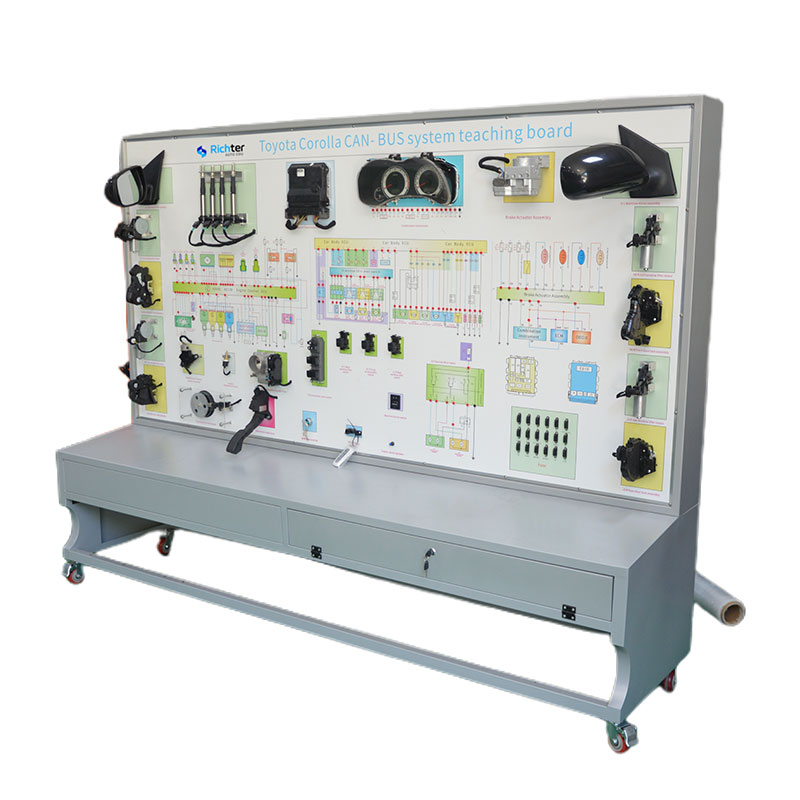

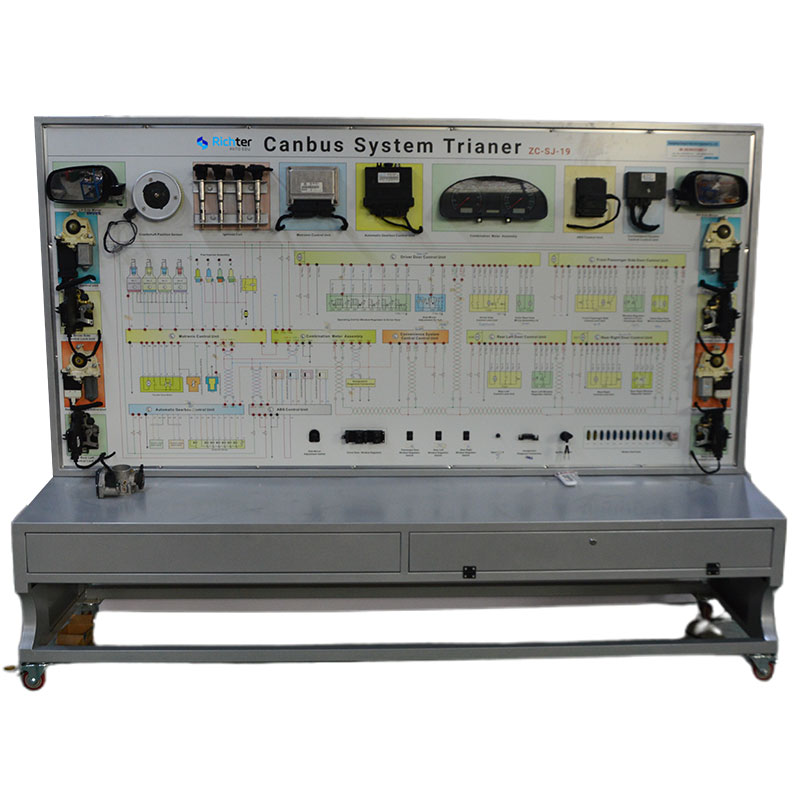

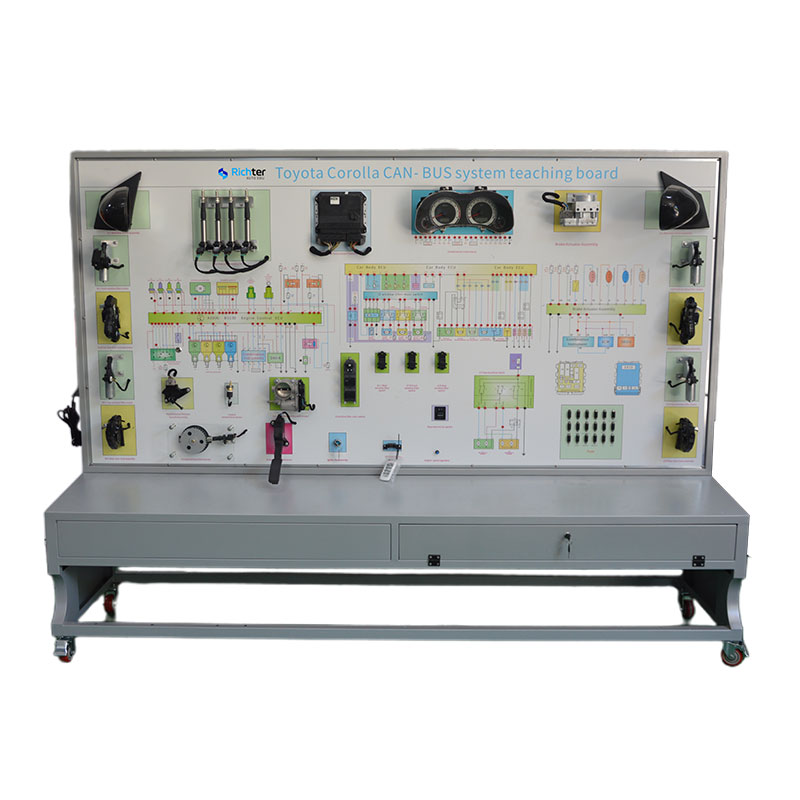

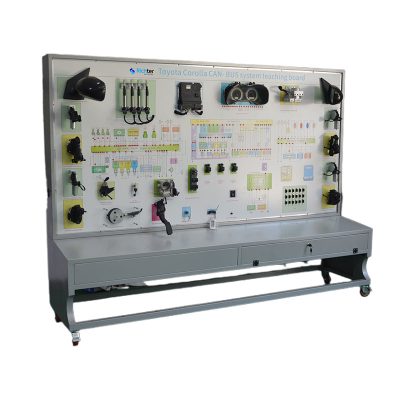

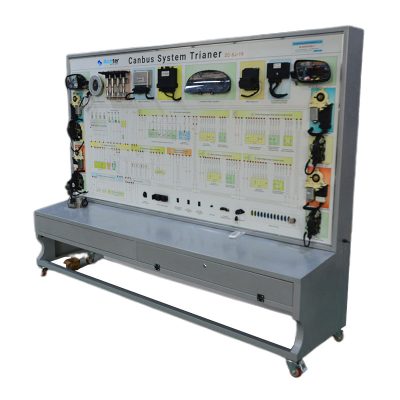

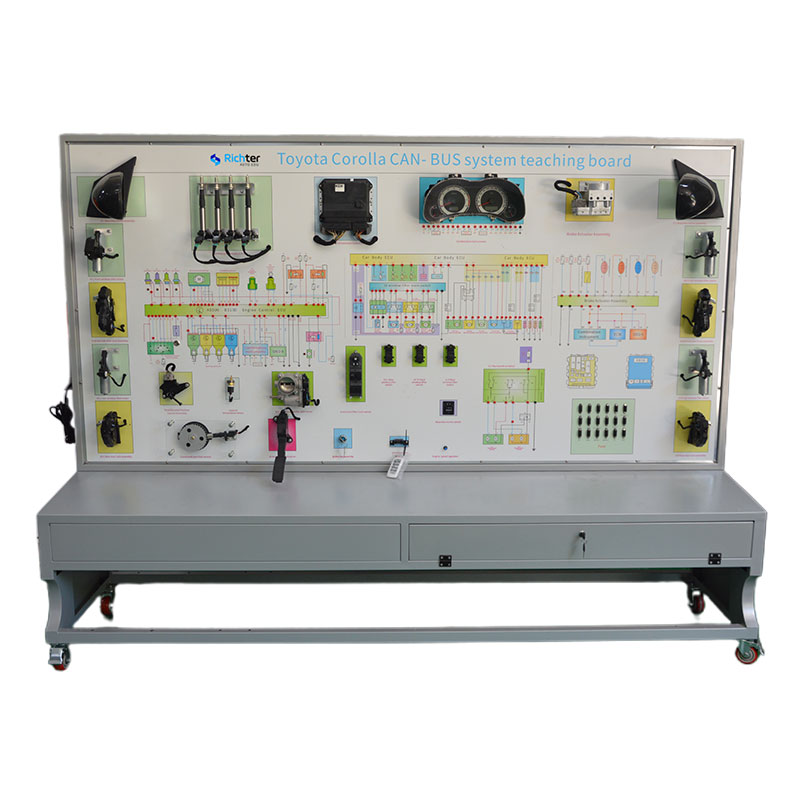

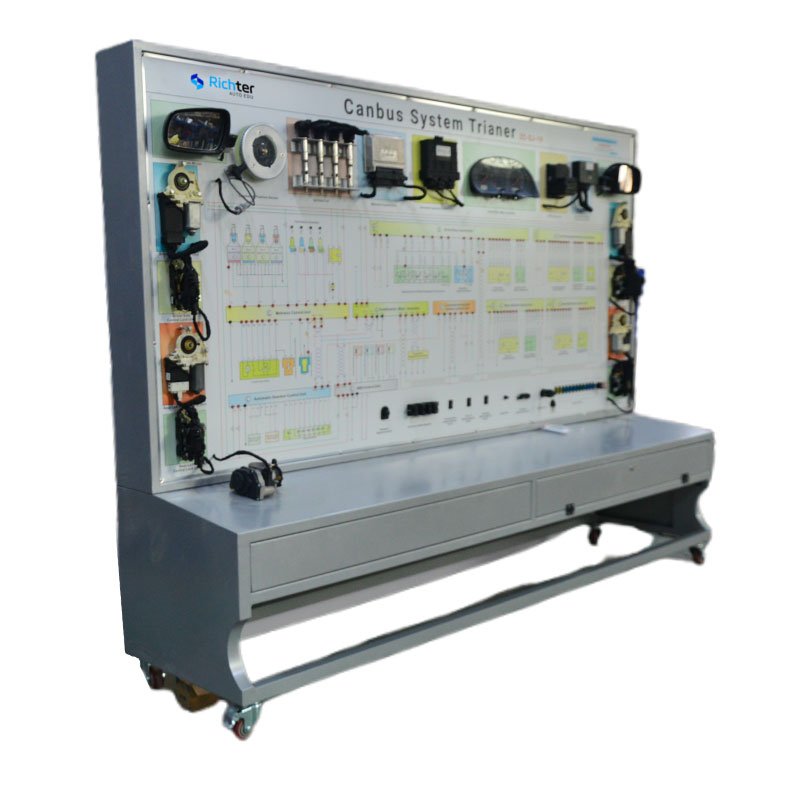

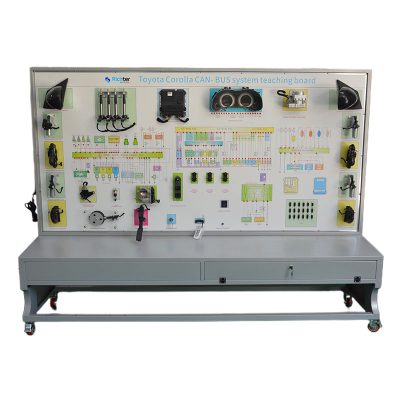

The Automotive CAN-BUS System Training board offers a comprehensive demonstration of the CAN network’s structure and working processes, making it an indispensable resource for schools and vocational institutions focused on automotive technology education.
Key Features of the Automotive CAN-BUS System Training Board
Fully Functional CAN Data Transmission System
This training board replicates a real, fully-operational CAN data transmission system that mimics an actual vehicle’s on-board network. It showcases the interaction of critical vehicle components such as the gear switch, throttle signal, speed signal, water temperature signal, anti-theft signal, power window switch signal, and door lock signal, among others. This hands-on setup allows students to understand how various signals and data flow within the vehicle network.High-Quality, Durable Construction
The teaching panel is crafted from high-grade aluminum-plastic, offering excellent resistance to impact, pollution, moisture, and fire. Its surface is treated with a primer for longevity, and a colorfast circuit diagram is printed for easy comparison with real components. This robust design ensures the panel can withstand the rigors of continuous student use.Comprehensive Diagnostics Integration
Equipped with a diagnostic seat, this training board allows students to connect to a vehicle decoder for performing ECU code queries, reading and clearing fault codes, checking data flow, and executing system tests. It covers key vehicle control units such as the engine system, automatic transmission system, ABS system, and comfort systems, offering real-world diagnostic experiences.Real-Time Signal Measurement
For in-depth learning, the training board includes detection terminals that provide real-time measurements of resistance, voltage, current, and frequency signals for the various CAN network components. This helps students gain practical knowledge of circuit analysis and troubleshooting.Convenient Power Supply Setup
The system operates on a 220V AC power supply, which is converted internally to a 12V DC output. This eliminates the need for batteries and ensures stable, reliable operation, while also providing short-circuit protection for added safety during use.Sturdy and Mobile Design
Built with a steel-frame structure and mounted on mobile casters, the training board is both durable and easy to move. The steel base ensures stability, while the self-locking caster system allows for simple transport and secure positioning within classroom environments.
Technical Specifications
- Overall Dimensions (L×W×H): 2400 × 700 × 1800 mm
- Power Supply: AC 220V ±10% 50Hz
- Operating Voltage: DC 12V
- Operating Temperature: -40°C ~ +50°C
- Steel Tube Frame: 60×40×3mm
- Cabinet: 1.5mm cold plate, stamped and formed
- Mobile Casters: 100×60mm for easy mobility
Training Benefits for Students
The Automotive CAN-BUS System Training Board offers students a chance to interact directly with an operational CAN-BUS network. Through this hands-on training tool, students can:
- Gain experience operating real automotive systems and understand the principles of data transmission.
- Engage with an actual automotive diagnostic process, including fault detection and repair procedures.
- Develop troubleshooting skills through the simulation of various faults, learning to read and resolve error codes effectively.
- Use integrated testing points to measure signals and components, solidifying their understanding of electrical circuits within vehicles.
Training Benefits for Instructors
Instructors will appreciate the clear, intuitive setup and comprehensive diagnostic capabilities, which facilitate efficient teaching. The key benefits include:
- An authentic learning experience, with the system using real automotive parts to ensure that students receive practical, industry-relevant training.
- Simplified demonstrations of vehicle network operations, complete with real-time diagnostics, fault simulation, and ECU communication.
- A reliable, mobile teaching tool that allows for easy classroom setup and collaborative learning opportunities.
- A safe learning environment with protective features such as removable panels to prevent contact with hot and rotating parts.
- The plug-and-play design ensures that setup time is minimal, allowing instructors to focus on delivering high-quality training.
Ideal for Educational Institutions and Automotive Training Centers
The Automotive CAN-BUS System Training Board is ideal for:
- Vocational Schools and Colleges: Offering a detailed understanding of modern vehicle electrical systems and diagnostics.
- Automotive Training Centers: Providing real-world, hands-on experience with the CAN-BUS system, essential for technicians and mechanics.
- Automotive Service and Repair Companies: Aiding in the training of employees to handle complex vehicle network systems and perform efficient diagnostics.
Conclusion
The Automotive CAN-BUS System Training Board by Richter provides an invaluable tool for learning about the intricate systems that power modern vehicles. By incorporating real-world diagnostic tools, robust construction, and a user-friendly design, it ensures that both students and instructors can engage in meaningful, practical automotive education. Whether you’re preparing the next generation of automotive professionals or enhancing existing technical skills, this training board is an essential part of any automotive curriculum.
