Designed specifically for educational institutions, training centers, and automotive technical schools, this training board ensures students acquire real-world, applicable skills. It is perfect for learning about the electronic control and diagnostics of diesel fuel injection systems, particularly in diesel engines used in both automotive and heavy machinery industries.
Key Features:

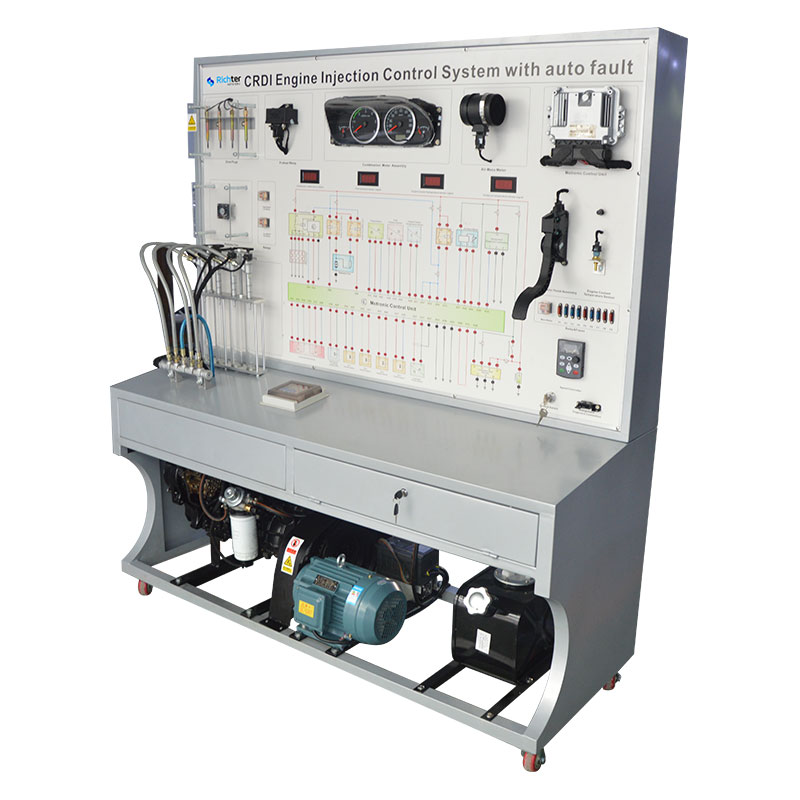

Real, Fully Operational Common Rail Diesel Engine System: This training board uses an actual common rail diesel fuel injection system to give students hands-on experience. It shows the real-time working process and structure of the diesel engine fuel system. The crankshaft position signal wheel is motor-driven, demonstrating the operational conditions of electronic fuel injection in a real-world scenario.
High-Quality Aluminum-Plastic Panel: The training board features an advanced, durable aluminum-plastic panel resistant to impact, fire, and moisture. The surface is treated with a special process to resist pollution and enhance longevity. A high-quality circuit diagram and working schematic are printed in colorfast ink, making it easy for students to compare theoretical diagrams with the actual system.
Direct Electrical Signal Monitoring: Equipped with a set of detection terminals, the training board allows users to directly monitor electrical signals from key components of the fuel injection system, including resistance, voltage, current, and frequency signals. This hands-on approach gives students valuable insights into system diagnostics and signal interpretation.
Integrated Diagnostic Seat: The educational board comes with a built-in diagnostic seat, which connects to specialized or universal vehicle diagnostic scanners. This feature enables students to perform self-diagnostics, read and clear fault codes, and view data flow for the common rail diesel injection system.
Robust and Practical Design: The structure of the training board is built with a sturdy steel frame, ensuring durability and stability. The panel itself is made from a 1.5mm cold-rolled steel plate, providing a sleek, robust design. The base is fitted with 100×60mm mobile casters, making it easy to move and set up in various classroom environments. A built-in 40cm desktop on the base provides a convenient space for placing instruments, data, and tools.
Efficient Power Supply: The training board operates on a standard 220V AC power supply, which is converted into a 12V DC power source, eliminating the need for batteries. This provides a consistent and safe operating environment with short-circuit protection to ensure maximum safety during training.
Technical Specifications:
- Overall Dimensions (L×W×H): 1240×600×1700 mm
- Power Supply: AC 220V ±10%, 50Hz
- Operating Voltage: DC 12V
- Operating Temperature: -40℃ to +50℃
- Frame Material: 60×40×3mm steel tube
- Cabinet Material: 1.5mm cold plate stamped and formed
- Mobile Casters: 100×60mm
Why Choose This Diesel Engine Training Board?
Hands-On Learning Experience: Students can directly engage with a real common rail diesel engine, gaining invaluable insights into fuel injection systems and the complex mechanics of modern diesel engines.
Comprehensive Diagnostic Capabilities: With the integrated diagnostic seat, students can perform live diagnostics, improving their ability to troubleshoot real engine issues and enhance their problem-solving skills.
Built for Educational Excellence: The board is designed for efficiency and durability, with easy-to-read circuit diagrams and real-time working system demonstrations. It serves as an essential tool for understanding both the theory and practical application of diesel engine fuel injection systems.
Accessible and Portable: The user-friendly design, including the mobility casters and space for additional tools, ensures that the training board is easy to set up in any classroom or workshop environment. The plug-and-play nature of the system makes it easy to begin training without complicated setups.
Ideal For:
- Technical Schools and Universities: Perfect for teaching students the fundamentals of diesel engine fuel systems.
- Automotive Training Centers: Ideal for technical training in diesel engine diagnostics and fuel injection maintenance.
- Engine Technicians and Mechanics: Provides hands-on practice in troubleshooting and maintaining diesel fuel injection systems.
Upgrade Your Training Capabilities with Richter: Richter is committed to providing world-class automotive training solutions, ensuring educational institutions have access to the most advanced and practical training tools. With this Diesel Common Rail Engine Electric Control System Training Board, your students will gain real-world knowledge, practical skills, and the confidence needed to excel in the automotive industry.
