Features:

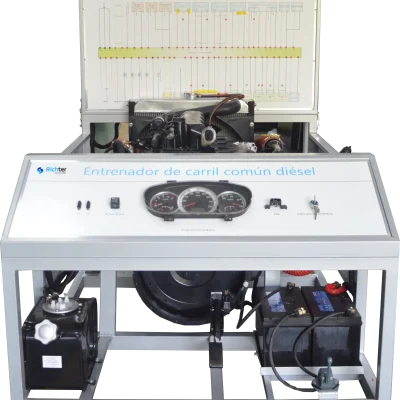

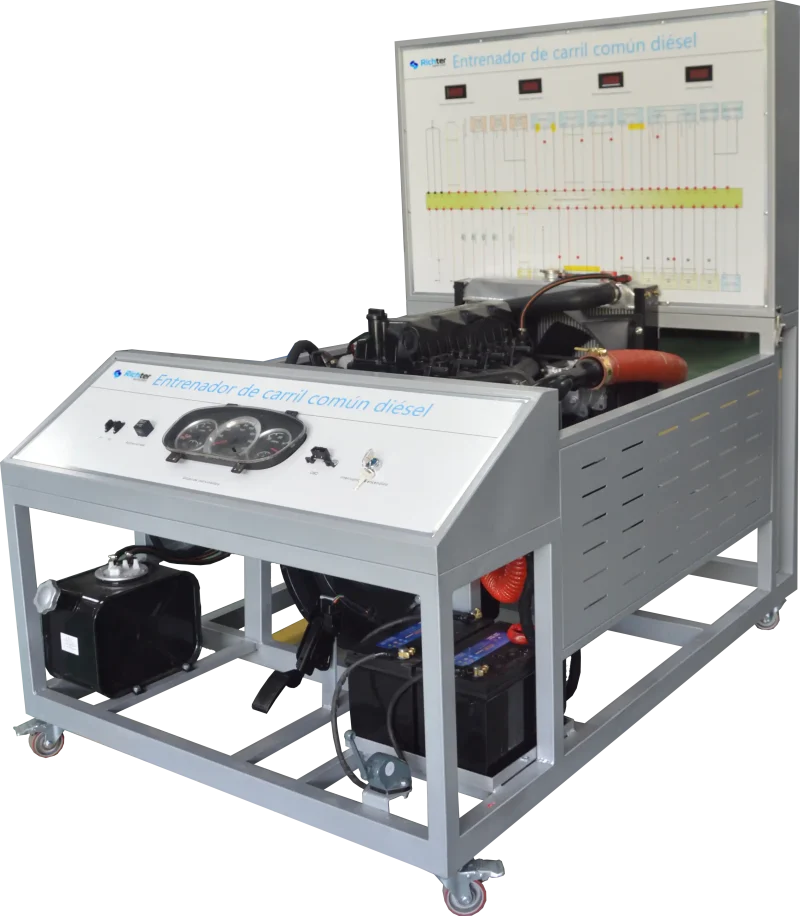

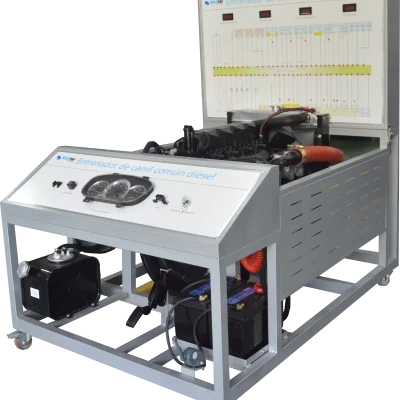

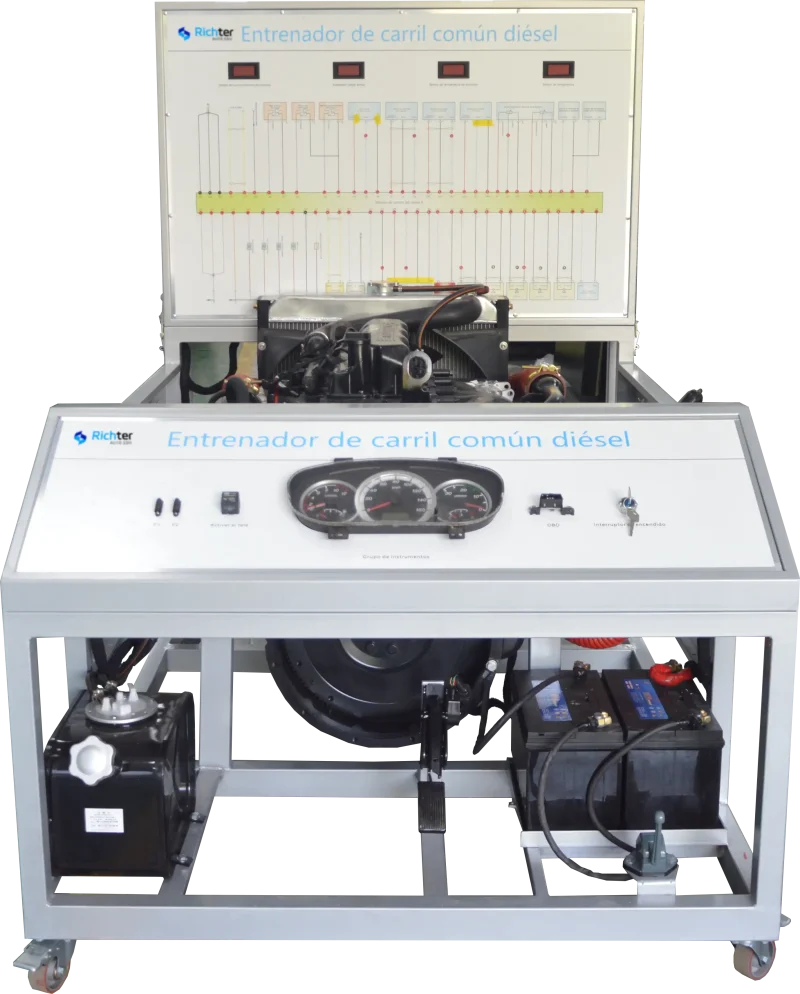

Realistic Diesel Engine Trainers:
- The trainer uses a fully operational electronically controlled common rail diesel engine that mimics real-world engine behavior, including starting, accelerating, decelerating, and idling.
- Provides a comprehensive demonstration of the engine’s structural components and operational processes, allowing for hands-on learning and exploration.
Interactive Learning with Electrical Signals:
- Directly compare and analyze electrical signals from the engine components, including sensors, actuators, and the engine control unit (ECU) pins.
- Monitor various signals such as voltage, resistance, current, and frequency to understand how each part functions within the system.
Real-Time Engine Parameters:
- The built-in automotive instrument panel displays key engine parameters, such as engine speed, water temperature, oil pressure, charge indicator, and fault indicators.
- Provides students with a real-time understanding of how the engine performs under different operating conditions.
Integrated Fault Diagnosis:
- Equipped with a diagnostic seat that connects to specialized or universal vehicle code devices to read fault codes, clear errors, and display data flows.
- Enables students to troubleshoot and diagnose issues with the electronic control system, making it an essential tool for developing practical diagnostic skills.
Throttle Control for Real-Time Engine Testing:
- The trainer includes a throttle control device, which allows students to control acceleration and deceleration, offering a deeper understanding of engine performance and behavior.
Comprehensive Protection Features:
- Features essential safety elements, including a main power switch, protective covers for the water tank and flywheel, and guard rails on both sides of the platform for added safety during operation.
Durable and Mobile Design:
- Built on a robust steel structure with a durable sprayed surface, ensuring longevity and resistance to wear.
- Equipped with self-locking castors for easy mobility, allowing the trainer to be moved safely and securely within a training environment.
Technical Specifications:
- Dimensions: 1500 × 1000 × 1700mm (L × W × H)
- Power Supply: DC 12V
- Fuel: Compatible with engine-specific fuel grade
- Fuel Tank Capacity: 10L
- Operating Temperature: -40°C to +50°C
- Steel Structure: 60 * 40 * 3mm
- Panel Cabinet: 1.5mm cold plate stamped and formed
- Mobile Castors: 120 * 80mm for easy mobility
The Value for Students:
- The Diesel Engine Trainer offers students a hands-on, interactive experience with a real diesel engine, allowing them to gain practical skills in engine operation, troubleshooting, and diagnostics.
- Through direct engagement with the engine and its components, students can enhance their understanding of electronic control systems, gain real-time diagnostic insights, and develop a deep knowledge of diesel engine technologies.
The Value for Instructors:
- This training system is a valuable resource for instructors to demonstrate the workings of modern diesel engines using authentic OEM components.
- It provides an engaging and informative platform for teaching engine diagnostics, electrical systems, and performance analysis.
- The trainer’s ability to simulate faults and allow for real-time diagnostic checks makes it an excellent tool for improving troubleshooting skills.
- The robust and mobile design ensures that the trainer can be used effectively in both small and large training environments, facilitating practical, hands-on learning.
Why Choose Richter’s Diesel Engine Trainer?
- As part of Richter’s extensive range of automotive training equipment, the Diesel Engine Trainer is designed to offer unparalleled hands-on learning experiences. We collaborate closely with educational institutions and leading automotive manufacturers to ensure that our products remain at the cutting edge of industry trends.
- Richter’s Diesel Engine Trainer provides students with the necessary tools to master the skills required for working on modern diesel engines, making it a crucial resource for vocational and technical education.
Explore More: If you’re looking to elevate your training program with top-tier automotive education equipment, consider Richter’s Diesel Engine Trainer. Contact us today to learn more about how this product can enhance your curriculum and improve your students’ skills.
