Overview:
By utilizing real automotive components, this training board helps students understand the structure, operation, and maintenance of power seats commonly found in modern vehicles. Whether for theoretical learning or practical maintenance, the Electric Seat System Training Board offers an interactive and realistic learning experience.
Key Features:
1. Realistic and Functional Model:

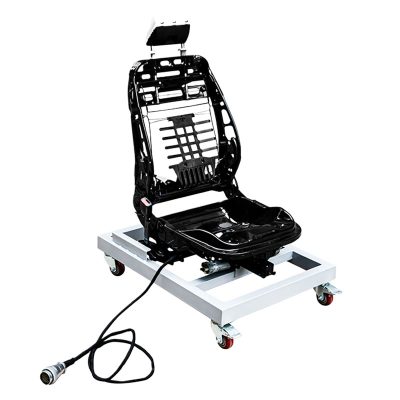

- The training board uses a fully operational electric seat from the driver’s side of a vehicle. It demonstrates various adjustments including forward/backward movement, tilt, and vertical adjustments.
- The memory function feature allows students to operate the memory switch, storing and recalling preset driving positions for optimal seat positioning.
2. Durable and High-Quality Construction:
- The instructional panel is made of a 4mm-thick anti-corrosion, anti-impact, and fireproof aluminum-plastic surface, designed to withstand long-term use in educational environments.
- The UV-treated colorfast circuit diagram on the panel allows for clear, visual correlation with the real component, helping students connect theoretical knowledge with real-world applications.
3. Advanced Detection and Measurement:
- Built-in detection terminals provide students the opportunity to measure electrical signals directly from the circuit elements of the power seat, including resistance, voltage, current, and frequency signals.
- This feature enhances practical understanding of automotive electrical systems and troubleshooting techniques.
4. Robust and Mobile Design:
- The training board is built with a steel tube frame and a 1.5mm cold plate punching structure, ensuring durability and stability.
- With integrated 100mm casters, the system can be easily moved for flexible classroom setups and storage.
5. Convenient Power Supply:
- Powered by a standard 220V AC supply, which is converted internally into 12V DC, reducing the need for batteries and eliminating charging concerns.
- The 12V DC system is equipped with short-circuit protection for safety during operation.
Educational Value:
For Students:
- Hands-On Experience: Gain practical knowledge of electric seat operation, including adjustments and memory settings.
- Real-World Application: Learn to troubleshoot and repair electrical components using real automotive seat systems.
- Interactive Learning: Use the circuit diagram to directly observe the relationship between theory and the actual operation of the seat system.
- Measurement and Testing: Access detection terminals to measure key electrical parameters, enhancing understanding of automotive electrical principles.
For Instructors:
- Comprehensive Demonstration Tool: This board offers instructors the ability to demonstrate the working principles of automotive power seats, making it easier to teach complex systems.
- Practical Troubleshooting Training: Allow students to test their skills by simulating faults and monitoring system responses in real-time.
- Easy Setup and Mobility: With its sturdy, mobile design, this system can be easily moved around the classroom or workshop, accommodating multiple training scenarios.
Specifications:
- Dimensions: 1240 x 650 x 1700 mm (L x W x H)
- External Power Supply: AC 220V ± 10%, 50Hz
- Operating Voltage: 12V DC
- Operating Temperature: -40°C to +50°C
- Steel Tube Frame: 60 x 40 x 3mm
- Mobile Casters: 100 x 60mm
Optional Add-Ons (Sold Separately):
- Volkswagen Vehicle Electrical System Trainer
- Toyota Vehicle Electrical System Trainer
Conclusion:
The Electric Seat System Training Board is a must-have educational tool for any institution focused on automotive electrical training. With its real-world functionality, advanced measurement capabilities, and high-quality design, it offers unparalleled value to both students and instructors. Enhance your training programs today with Richter’s comprehensive automotive training solutions.
