Product Overview

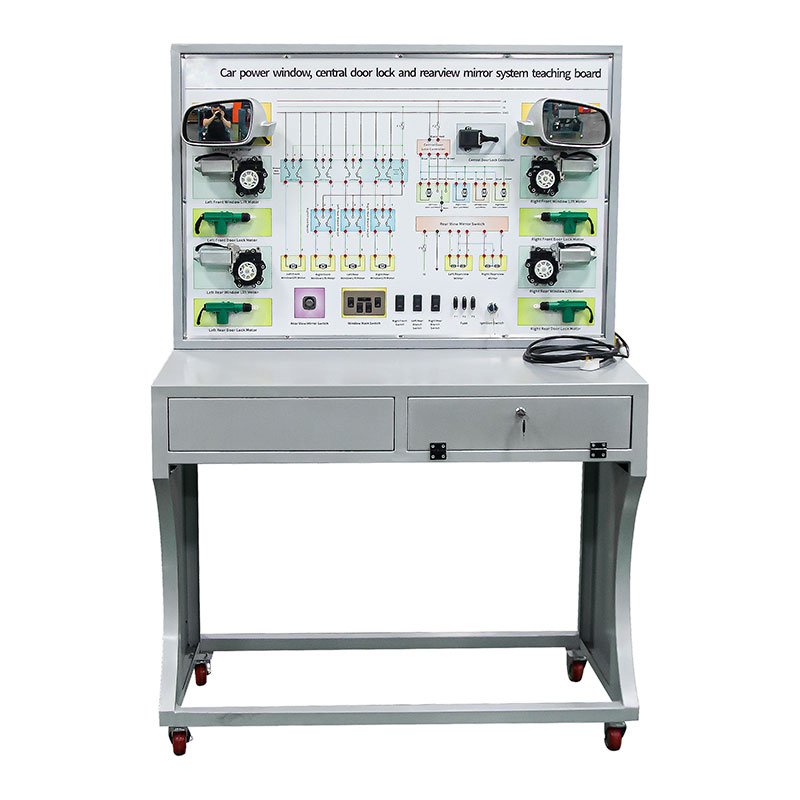

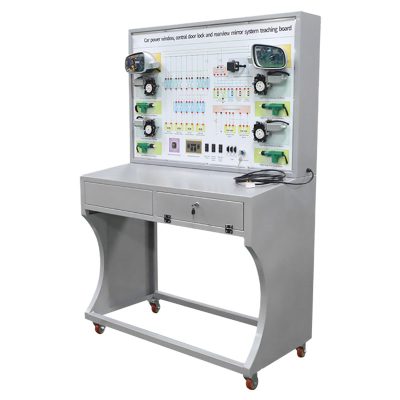

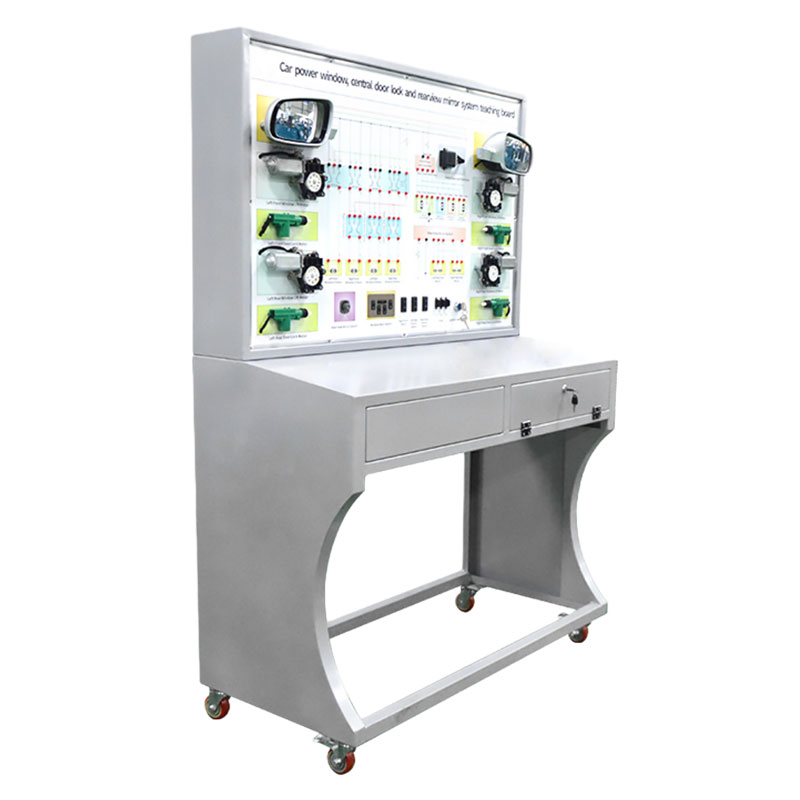

It serves as an ideal tool for schools, vocational institutions, and training centers, facilitating both theoretical and maintenance training on automotive electrical systems. Whether you’re teaching students about basic car electrical systems or preparing technicians for real-world diagnostics, this training board is an essential part of the curriculum.
Key Features
- Realistic, Fully Functional Systems: The training board includes a fully operational power window, central control door lock, and rearview mirror system, mimicking the exact composition and structure of these components in modern vehicles.
- Hands-on Operation: Students can interact with the switches for the power window, central door lock, and rearview mirror to observe the live working processes of each system, promoting practical, hands-on learning.
- High-Quality Construction:
- The board is made from a 4mm-thick, anti-corrosion, fireproof, and moisture-proof aluminum-plastic panel, ensuring long-term durability and resistance to wear.
- It features a specially treated surface with a printed, colorfast circuit diagram, allowing easy comparison between the actual components and the schematic.
- Electrical Signal Detection: The panel includes detection terminals for real-time measurement of electrical signals in the power window, door lock, and rearview mirror circuits. This allows for precise analysis of resistance, voltage, current, and frequency signals.
- Robust and Mobile Design:
- The sturdy 1.5mm cold plate structure and steel-frame underframe ensure stability, while the mobile casters (100×60mm) allow for easy mobility between training areas.
- The base of the board also includes a 40cm tabletop for placing data sheets, light detection instruments, or other training tools.
- Power Supply: The system is powered by a standard 220V AC supply, which is converted to 12V DC internally, eliminating the need for external batteries and reducing maintenance. The 12V DC system includes a short circuit protection feature for safety.
Technical Specifications
- Dimensions: 1740×600×1700mm (L×W×H)
- External Power Supply: AC 220V±10% 50Hz
- Operating Voltage: DC 12V
- Operating Temperature Range: -40℃ to +50℃
- Steel Tube: 60×40×3mm
- Cabinet: 1.5mm cold plate stamped and formed
- Mobile Casters: 100×60mm
Why Choose This Training Board?
- Ideal for Vocational Training: This training board is perfect for automotive technical schools and vocational colleges. It enables students to gain real-world experience with electrical systems found in everyday vehicles.
- Simplified Learning: The easy-to-understand circuit diagrams printed on the board, combined with hands-on interaction, make it easier for students to grasp the underlying principles of car electrical systems.
- Interactive Learning: The system allows students to troubleshoot and simulate faults by measuring signals and understanding system operation in real-time.
- Durability and Mobility: With its robust frame and portable design, the board is built for long-term use and can be easily moved around the training environment.
Enhance Your Training with Richter
At Richter, we specialize in providing world-leading automotive training equipment designed to help educational institutions and automotive professionals develop essential skills. Our training solutions are tailored to the evolving needs of the automotive and electric vehicle industries. For more information about our Electric Windows and Door Lock System Training Board and other products, contact us today and take your training to the next level.
