Electronic Hydraulic Power Steering System Trainer

Key Features

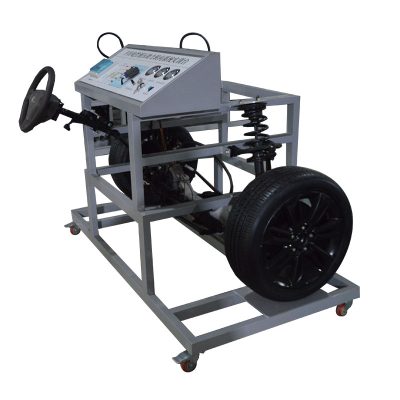

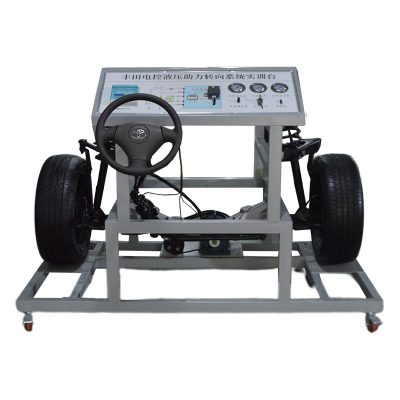

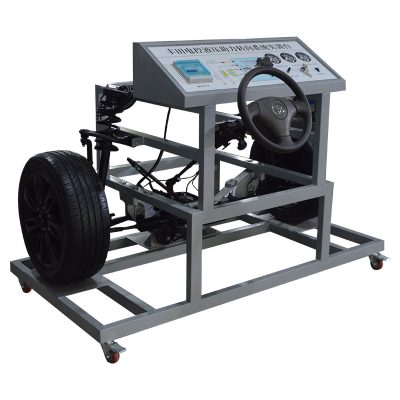

1. Realistic Electronic Control Power Steering System
   This training platform is based on an actual vehicle’s front axle, enabling learners to engage with a fully operational electronic power steering system. It demonstrates all the core components of the system, offering practical exposure to the technology used in modern vehicles.

2. Motor-Driven Booster Pump and Speed Control
   The system uses a motor to drive the booster pump, allowing the student to operate the steering wheel. The speed and signal analog knob provide a simulation of real-world driving conditions, effectively demonstrating the working principles of the electronic steering system.

3. Durable and Advanced Panel Design
   The trainer’s panel is crafted from a 4mm-thick, anti-corrosion, impact-resistant, fireproof, and moisture-proof aluminum-plastic composite. The surface is treated with a special spray coating for durability. Additionally, it features a high-quality, colorfast printed circuit diagram that clearly shows the connections, enabling students to correlate the diagram with real components for better understanding.

4. Integrated Detection Terminals for Real-Time Monitoring
   The training bench includes built-in detection terminals that allow direct measurement of various electrical signals from the EPS system. Measurements such as resistance, voltage, current, and frequency signals can be easily accessed, providing students with real-time data to support their learning and troubleshooting processes.

5. Mobile and Sturdy Steel Base
   The trainer is mounted on a robust steel frame with a surface treated through a specialized spraying process. It comes with self-locking casters, enabling easy mobility while ensuring stability and safety during use. Its durable design is built to withstand the rigors of educational environments.

Specifications

• Overall Dimensions: 1700×1000×1750 mm (L×W×H)
• Input Power Supply: AC 220V ±10%, 50Hz
• Operating Power Supply: DC 12V
• Operating Temperature Range: -40℃ to +50℃
• Oil Pressure Gauge: 0–100 kg/psi
• Steel Tube: 60×40×3mm
• Mobile Casters: 100×50mm

Educational Value for Students

1. Hands-on Learning
   Engage with a realistic, fully operational electronic power steering system, gaining direct experience with the technology in modern vehicles. This interactive learning tool helps students understand the intricate components and operation of power steering systems in real-world applications.

2. Real-Time Diagnostic Capabilities
   Students can measure and analyze real electrical signals from various components of the EPS system, enabling hands-on practice with diagnostic tools such as resistance, voltage, current, and frequency measurements.

3. Systematic Troubleshooting and Fault Simulation
   The trainer allows for practical troubleshooting by simulating faults within the system. Students can use the detection terminals to identify and diagnose issues, enhancing their diagnostic skills and preparing them for real-world challenges.

Educational Value for Instructors

1. Comprehensive Teaching Tool
   The trainer allows instructors to demonstrate the operation and structure of electronic power steering systems using real, functional components. It also helps explain electrical signals, measurements, and the importance of each part in the system’s overall functionality.

2. Interactive Learning Experience
   By providing students with the ability to measure live data and simulate faults, instructors can foster a more engaging and hands-on learning experience. This makes it easier for students to comprehend the complexity of modern automotive technologies and apply theoretical knowledge to practical scenarios.

3. Durable and Safe Design for Classroom Use
   The trainer’s robust construction ensures it will withstand the demands of any educational setting. The self-locking casters provide mobility, while the closed structure and removable panels ensure student safety while maintaining easy access for maintenance and instructional purposes.

Why Choose Richter’s Electronic Hydraulic Power Steering System Trainer?

Richter’s training solutions are built to meet the growing needs of automotive education, combining realism with innovation. Our equipment is designed with industry-leading quality, ensuring that students gain valuable hands-on experience with the most advanced automotive technologies. Whether for a high school, technical institute, or a corporate training environment, our products support comprehensive learning in a safe and dynamic way.
