Product Overview

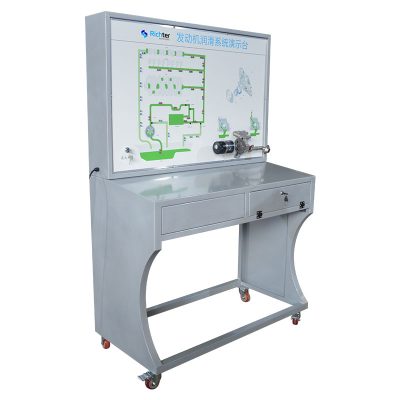

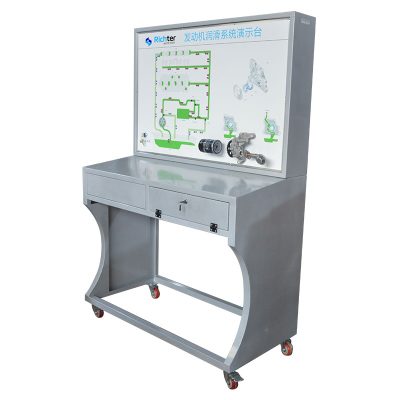

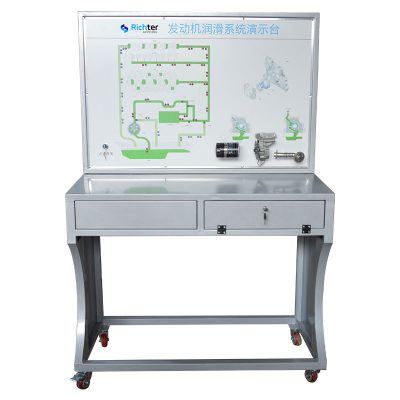

The Engine Lubrication System Training Board is an anatomical model that dissects the gasoline engine lubrication system, providing a clear and comprehensive view of the system’s structures. The equipment is designed with precise cutaways to showcase the internal components, enabling users to examine every part in detail. This fully functional training tool is equipped with interactive features to enhance the learning experience.
Key Features
Anatomical Design for Enhanced Learning
The training board dissects the engine’s lubrication system into manageable sections, each painted with vibrant colors to clearly highlight the inner and outer components. This approach makes it easy for students to understand the complex structure of the system and how each part interacts during engine operation.Durable and Interactive Panel
The panel uses advanced aluminum-plastic material, known for its resistance to impact, moisture, and fire. The surface is treated with a specialized spraying process, and it includes color-fast circuit diagrams and working principle schematics. This allows students to easily compare the real-world engine parts with their theoretical counterparts.Dynamic LED Flow Display
One of the standout features is the integration of color-coded LED lights that represent the flow of lubricating oil within the engine’s oil circuit. The LEDs flash in a sequence to demonstrate the dynamic flow of oil, providing a visual aid that enhances understanding.Integrated Detection Terminals
The training board includes detection terminals that allow students to measure various electrical signals in the lubrication system, such as resistance, voltage, current, and frequency signals. This feature provides real-time feedback, improving the hands-on learning experience.Robust, Mobile Design
Built with a sturdy steel frame, the training board comes equipped with 100mm self-locking casters for easy mobility and secure positioning in different learning environments. The surface features a convenient 40cm tabletop for placing light detection instruments and other materials.Efficient Power Supply
The system operates on a standard 220V AC power supply, which is internally converted to a 12V DC power supply. This eliminates the need for batteries and simplifies setup, while the 12V system includes short circuit protection for safety.
Value for Students
The Engine Lubrication System Training Board offers practical, hands-on experience that enhances students’ understanding of engine components and their functions. Students can:
- Engage directly with a fully dissected engine lubrication system, observing both its structure and operation.
- Use LED indicators to visualize the flow of lubricating oil, reinforcing their understanding of system dynamics.
- Measure and monitor electrical signals within the system, enabling them to gain real-world diagnostic skills.
- Understand and apply the principles of lubrication system maintenance, a critical aspect of automotive engineering.
Value for Instructors
For instructors, this training board offers a powerful teaching tool that facilitates deeper learning and student engagement:
- Demonstrate key engine principles with a real, anatomical model, improving comprehension and retention.
- Use the interactive features, including dynamic LEDs and detection terminals, to provide a hands-on, dynamic learning environment.
- Simplify complex concepts with the visual aids and schematic diagrams that accompany the training board.
- Encourage collaborative learning by allowing multiple students to engage with the system simultaneously.
Technical Specifications
- Overall Dimensions: 1240 x 600 x 1700 mm (L x W x H)
- External Power Supply: AC 220V ±10% 50Hz
- Operating Voltage: DC 12V
- Operating Temperature: -40°C ~ +50°C
- Steel Tube: 60 x 40 x 3 mm
- Cabinet Material: 1.5 mm cold-plate stamped and formed
- Mobile Casters: 100 x 60 mm
Conclusion
Richter’s Engine Lubrication System Training Board is an invaluable educational tool that bridges the gap between theoretical knowledge and practical experience. By providing a detailed, hands-on exploration of engine lubrication systems, it empowers students to gain the skills needed for real-world automotive repair and maintenance. Whether used in classrooms, training centers, or technical colleges, this innovative training board ensures that students and instructors can achieve the highest levels of automotive proficiency.
