Product Overview

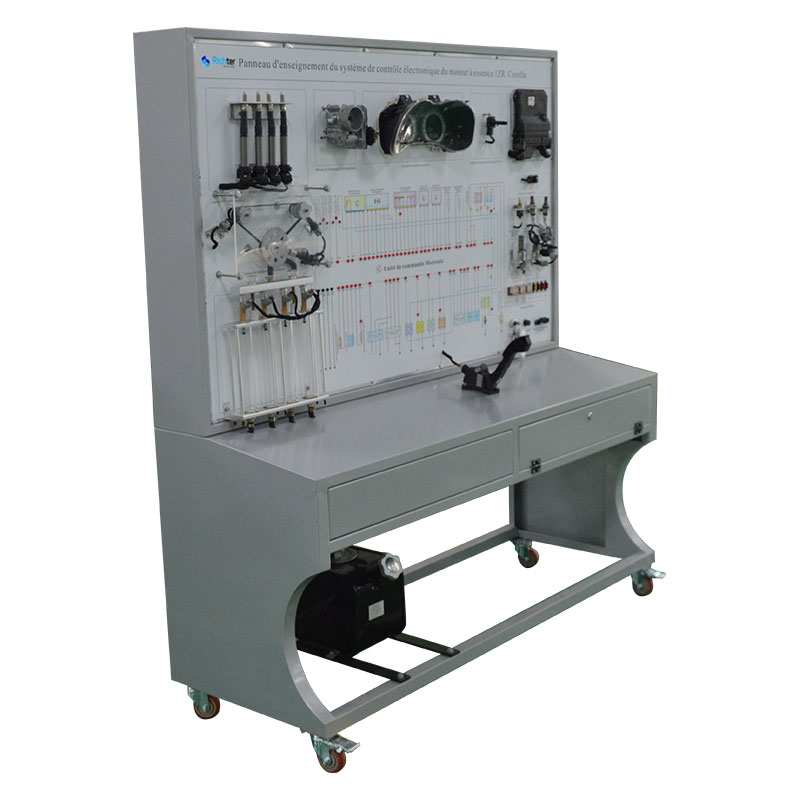

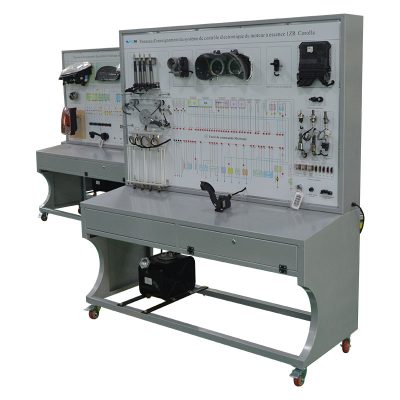

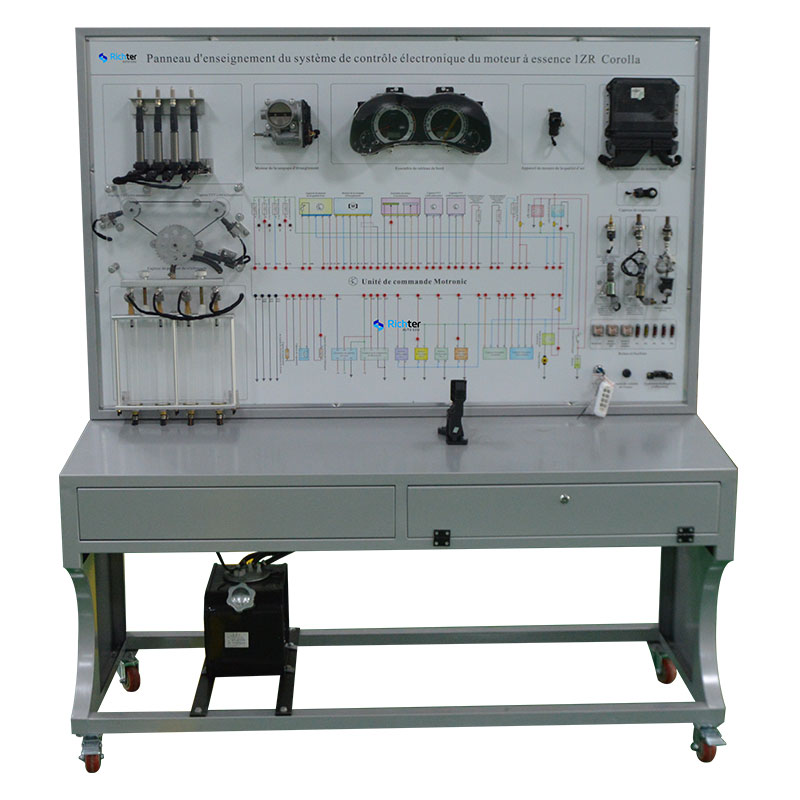

The Gasoline Engine Electric Control System Training Board is designed to simulate and demonstrate key engine functions, such as spark plug ignition, fuel pump operation, and fuel injector activation. By using real-world components, it provides students with a clear understanding of how engine electronic control systems operate in real-life scenarios.
This hands-on training tool is ideal for theory and maintenance training on modern gasoline engine systems, especially for students learning automotive technology. Whether you’re an instructor aiming to demonstrate engine control principles or a technician looking to improve diagnostic skills, this tool is designed to make engine systems easier to understand and troubleshoot.
Key Features and Benefits
Real Engine Components for Authentic Learning
The system uses real engine components, allowing students to experience actual engine operations such as ignition, fuel injection, and more. It simulates engine crankshaft movement, providing a highly realistic and interactive learning environment.Advanced Aluminum-Plastic Panel
The teaching panel features a durable aluminum-plastic surface resistant to impact, pollution, fire, and moisture. The panel is printed with color-fast circuit diagrams and schematic working principles, enabling students to easily correlate the circuit diagrams with the physical components.Comprehensive Detection Capabilities
Built-in detection terminals allow students to directly measure electrical signals from the engine’s electronic control system, including resistance, voltage, current, and frequency signals. This hands-on approach enhances their understanding of the system’s operations.OBD Diagnostic Seat
The training board comes equipped with a diagnostic seat that can be connected to either a specialized or general vehicle decoder. This feature enables students to read fault codes, clear them, and explore self-diagnosis functions of the engine control system, making it ideal for diagnostic training.Sturdy Construction and Mobility
Featuring a robust steel frame, the training board is built to last and comes with mobile casters for easy movement. The base also includes a 40cm tabletop for placing tools, data, or light detection equipment, ensuring a convenient and organized workspace for training.Simple and Convenient Power Supply
The system operates on a standard 220V AC power supply, converting it to a 12V DC power source for engine operations. With built-in short circuit protection, the power setup eliminates the need for batteries and the hassle of frequent recharging.
Value for Students
Practical Experience with Real Components
Students gain firsthand experience working with actual engine components, building their skills in diagnosing and understanding engine functions like ignition, fuel injection, and exhaust systems.Hands-On Diagnostic Training
The OBD diagnostic connector allows students to monitor engine parameters, read fault codes, and perform diagnostic procedures, ensuring they can apply real-world troubleshooting techniques.Interactive and Intuitive Learning
The color-coded circuit diagrams and direct measurement terminals provide an interactive and intuitive way to understand the engine control system. This facilitates deeper comprehension of complex systems and better prepares students for real-world engine diagnostics.
Value for Instructors
Efficient and Interactive Teaching Tool
The Gasoline Engine Electric Control System Training Board is a versatile teaching aid, enabling instructors to demonstrate key automotive systems and engine diagnostics. It simplifies the complex concepts of engine control systems, making them more accessible for students.Promotes Practical Troubleshooting Skills
With its fault simulation capabilities, this training board allows instructors to simulate faults by removing jumpers, helping students to develop their diagnostic skills in real-time.Durable and Easy to Maintain
The sturdy design ensures longevity and reliability, while the easy-to-maintain structure reduces downtime, allowing instructors to focus on teaching instead of equipment upkeep.
Specifications
- Dimensions: 1600 x 600 x 1700 mm (L x W x H)
- External Power Supply: AC 220V ±10%, 50Hz
- Operating Voltage: DC 12V
- Operating Temperature: -40℃ ~ +50℃
- Fuel Pressure Gauge: 0~10 kg/psi
- Steel Tube: 60×40×3 mm
- Cabinet: 1.5 mm cold plate stamped and formed
- Mobile Casters: 100×60 mm
Optional Add-Ons (Sold Separately)
TXB BIKE TEXA Diagnostic Scan Tool
Enhance diagnostics with the TXB BIKE TEXA scan tool for detailed fault code reading and analysis.TEXA Uniprobe Diagnostic Oscilloscope
Use this oscilloscope for in-depth analysis of engine electronic signals and performance.Automotive Diagnostics Kit ADK5004D by TiePie
A comprehensive kit for advanced automotive diagnostics.Foxwell OS100 Oscilloscope
Perfect for hands-on measurement and detailed engine system troubleshooting.
Conclusion
Richter’s Gasoline Engine Electric Control System Training Board provides an unparalleled learning experience for both students and instructors. Its real-world components, interactive diagnostics, and sturdy construction make it an essential tool for any automotive education program. Whether you’re a school, training center, or technician, this training board offers the hands-on experience and diagnostic capabilities needed to excel in automotive engine technology.
