Key Features:

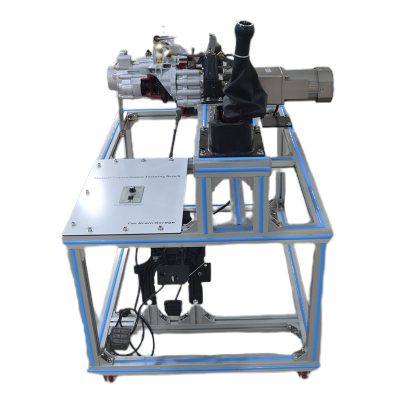

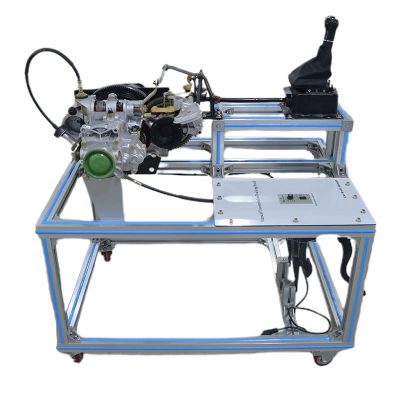

Complete Manual Transmission Assembly: The platform features a fully dissected manual transmission assembly, showcasing all parts and components in great detail. The transparent dissection allows learners to explore and understand the internal structure and the operation of a manual transmission.
Clear Internal Structure Display: Ingeniously designed dissection with color-coded sections clearly highlights the mechanical structure within the transmission. This method ensures that each part’s relationship and function are easily understood, helping students grasp the intricate assembly of a manual transmission system.
High-Strength Steel Construction: The platform is built with a durable high-strength steel frame, ensuring stability and longevity. The surface is treated using a spraying process, providing an extra layer of durability and a professional appearance that is both robust and long-lasting.
Movable with Self-Locking Castors: Equipped with self-locking castor wheels, this display platform can be easily moved and set up in various training environments. Its mobility allows instructors to conveniently move the unit for demonstration or practical exercises.

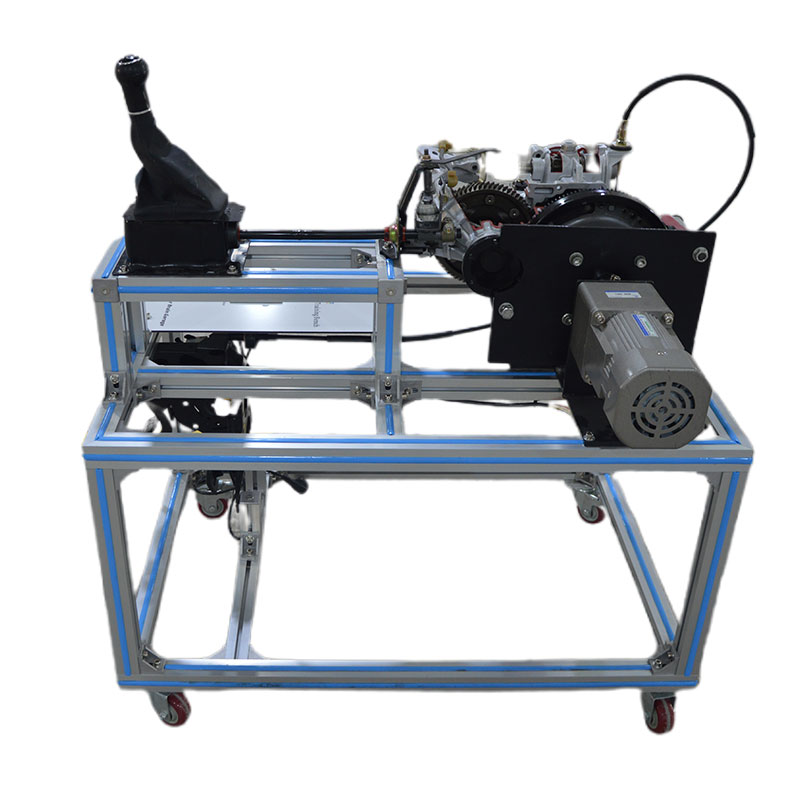

Single-Phase Gear Reduction Motor: The unit includes a single-phase 220V 250W gear reduction motor, simulating the real-world operation of a manual transmission system, which is essential for students to experience how the system functions under operational conditions.
Leakage Protection Switch: Safety is a priority with an included leakage protection switch, ensuring a safe learning environment while operating the equipment.
Compact and User-Friendly Design: The platform is compact, with dimensions of 800×600×470mm, making it suitable for various classroom setups. The mobile stand design makes it easy to transport and store, ensuring convenience for both instructors and students.
Value for Students:
- Hands-on Learning Experience: Students can dissect and explore a real manual transmission assembly, understanding the detailed components and how they interact during gear shifts.
- Visual Learning: The color-coded dissection provides a clear understanding of how each part contributes to the system, enhancing learning through visual aids.
- Real-World Application: Students get to engage with real-world automotive technology, improving their understanding of transmission systems and preparing them for hands-on repair or maintenance work in the automotive industry.
Value for Instructors:
- Efficient Teaching Tool: The dissected transmission assembly is an excellent visual aid for teaching complex mechanical concepts related to manual transmission systems. Instructors can easily demonstrate key operations such as power transfer, gear shifting, and component interaction.
- Enhanced Safety and Convenience: The platform’s design ensures that the components are secure and easy to handle, while the mobile stand allows for flexibility in the classroom setup.
- Improved Learning Outcomes: The ability to simulate gear shift operations, combined with a clear display of the internal workings of the transmission, helps students grasp key principles more effectively, making it easier to translate theoretical knowledge into practical skills.
Specifications:
- Dimensions (L×W×H): 800×600×470mm
- Weight: 50 kg (Approx.)
- Power Supply: 220V, Single-phase, 250W
- Frame Material: High-strength steel with color-coated finish
- Safety Features: Leakage protection switch for enhanced safety during operation
- Portability: Equipped with self-locking castor wheels for ease of movement
- Assembly Components: Complete manual transmission assembly for dissection
Optional Add-ons (Sold Separately):
- Automotive Diagnostic Tools
- Additional Automotive Simulation Software
Why Choose Richter’s Manual Transmission Display Platform?
At Richter, we are committed to providing cutting-edge training solutions for educational institutions and automotive professionals worldwide. Our Manual Transmission Dissection Display Platform is just one of the many tools we offer to enhance automotive training experiences. Designed with industry standards and educational needs in mind, this platform ensures students gain valuable, hands-on experience with the essential components of manual transmission systems.
For more information on this product and other training solutions, visit our website or contact us directly for a personalized consultation.
