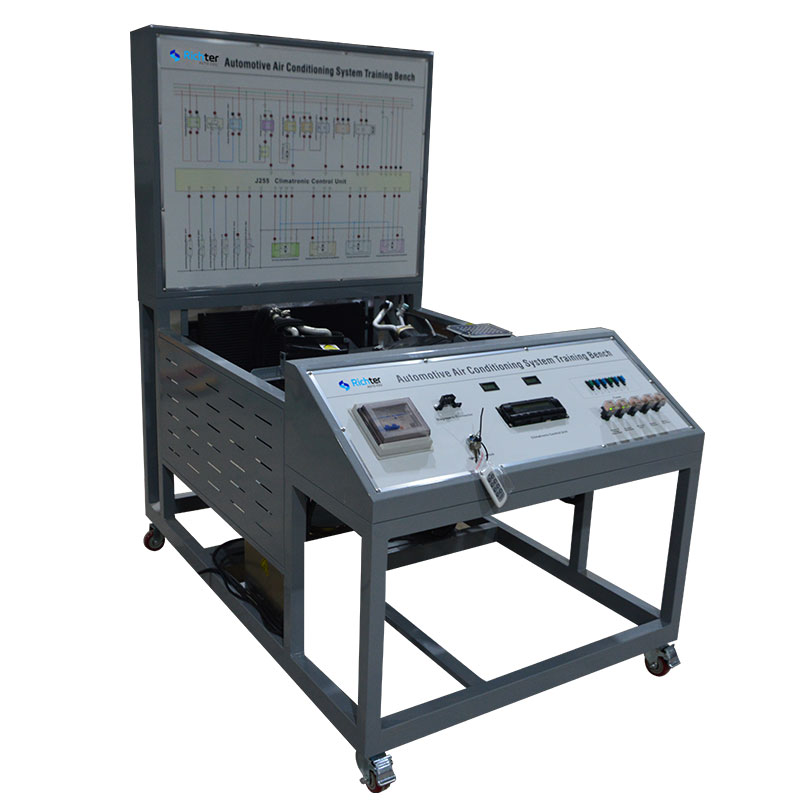

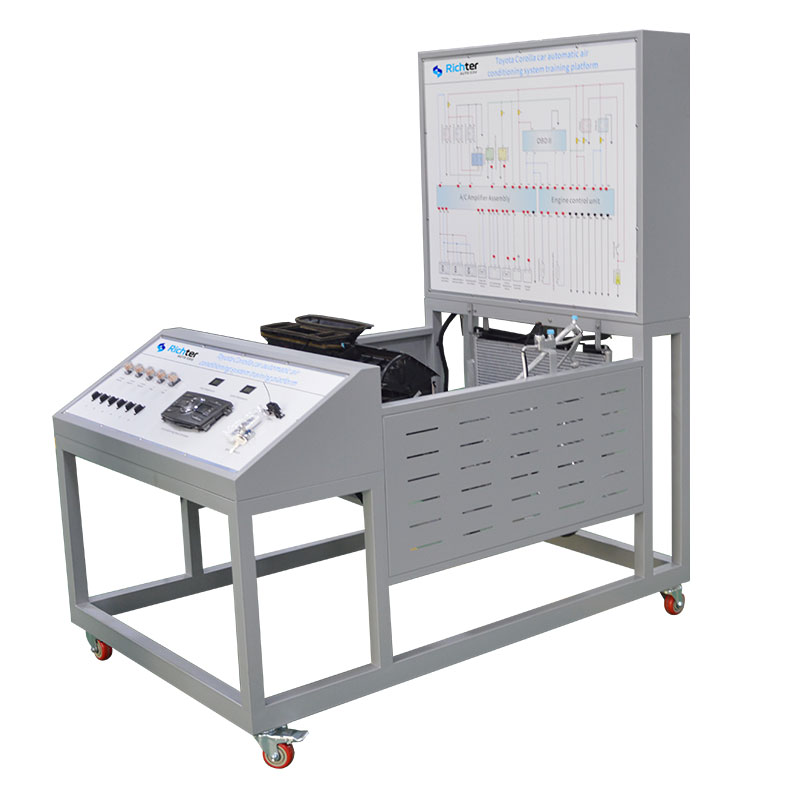

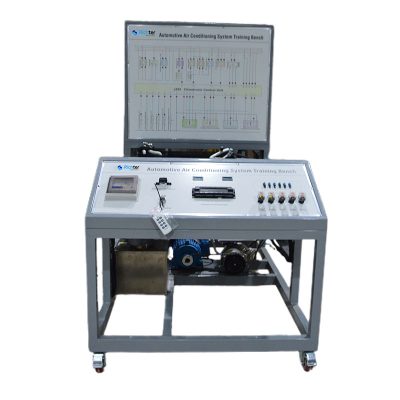

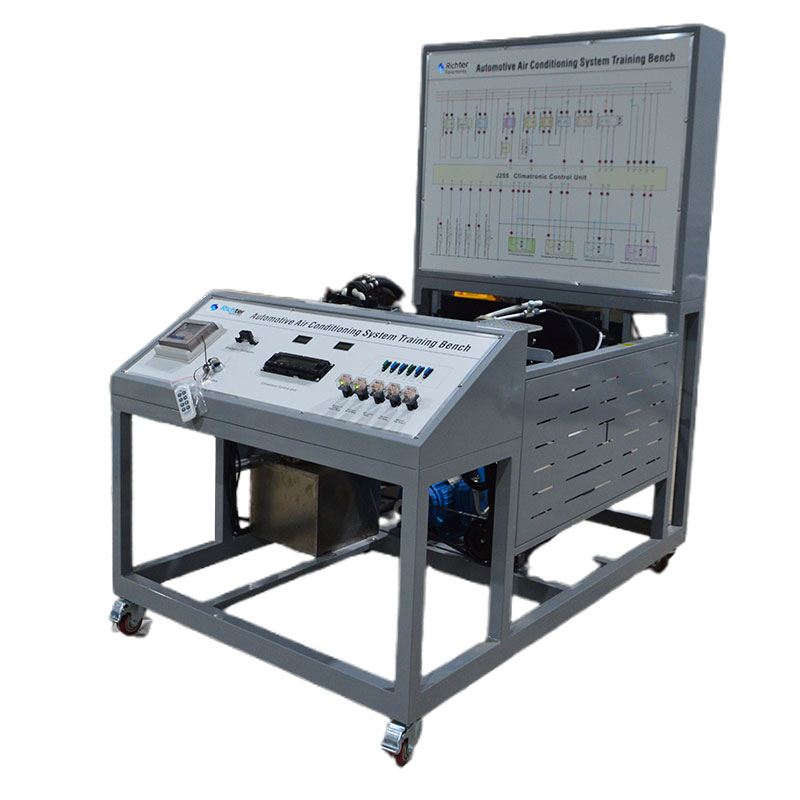

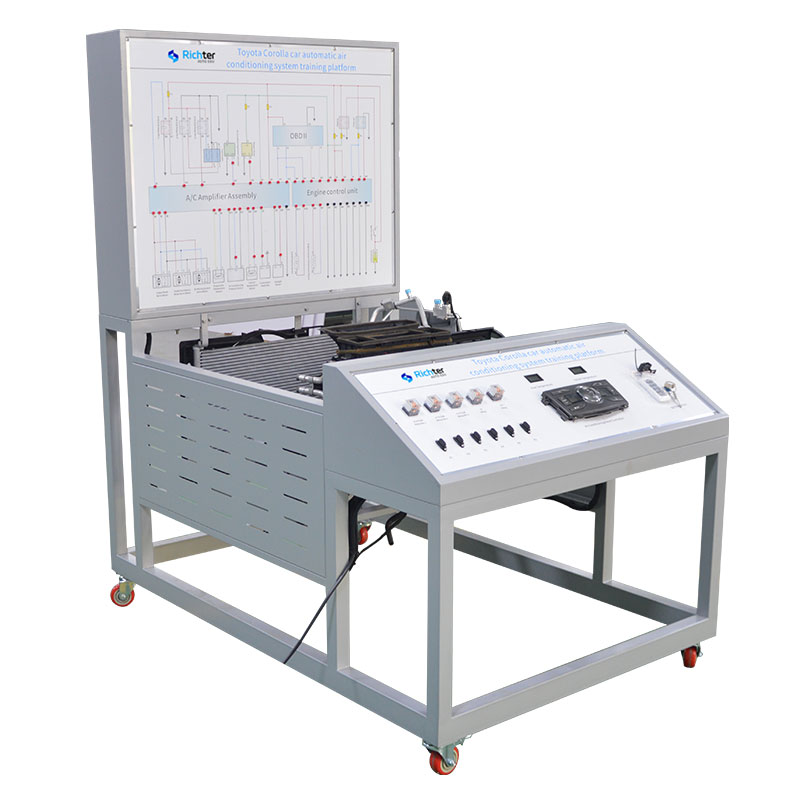

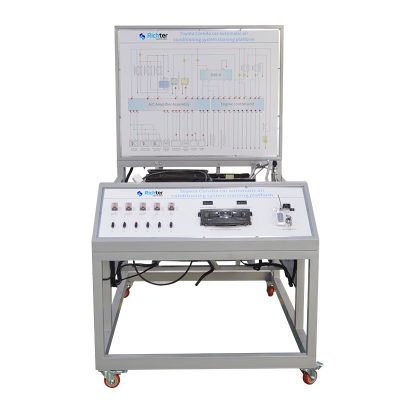

Automotive Automatic Air Conditioning System Trainer tool is essential for teaching both theoretical and practical aspects of automotive air conditioning systems, helping students develop a deep understanding of how these systems function in real-world scenarios.
Key Features
Real and Operational A/C System:
The trainer incorporates a fully functional automotive air conditioning system, allowing students to observe and interact with the various components as they operate. From compressor to condenser, every detail is faithfully recreated to ensure accurate learning.Motor-Powered Operation:
A motor powers the air conditioning compressor, which enables the operation of the entire system. Students can engage with the air conditioning control panel to simulate real-world conditions and better understand the principles of cooling and air circulation within vehicles.Advanced Training Panel Design:
The panel is made of high-quality aluminum-plastic material that is anti-corrosion, anti-impact, and moisture-proof. The UV-treated painting provides a durable surface with clear, colorfast circuit diagrams and operational flowcharts. This design ensures that students can easily compare theoretical circuits to the actual working system, enhancing their learning experience.Real-Time Monitoring and Measurement:
The training bench includes built-in pressure gauges and thermometers that display real-time data on air conditioning system pressures and air inlet and outlet temperatures. This feature provides a hands-on opportunity for students to monitor system performance and make necessary adjustments during their practical exercises.Electrical Signal Detection:
A dedicated detection terminal allows students to directly measure the electrical signals of key circuit elements, such as resistance, voltage, current, and frequency signals. This interactive feature is perfect for troubleshooting exercises and deeper understanding of system functionality.Practical Refrigerant Handling:
This trainer provides a platform for students to practice important skills such as refrigerant filling and leak detection. It prepares students for real-world maintenance tasks that are crucial for vehicle HVAC professionals.Convenient and Sturdy Base:
The base of the training bench is built with a strong steel structure and includes a 20cm steel platform for easy placement of tools, instruments, and data. The system is mounted on durable mobile casters that offer excellent flexibility, safety, and portability for various learning environments.
Value for Students
The Automotive Automatic Air Conditioning System Trainer provides a comprehensive, hands-on learning experience. Students can directly engage with all components of an air conditioning system, monitoring live data, analyzing system performance, and performing critical maintenance tasks such as refrigerant refilling and leak detection. This real-world application helps students build valuable, practical skills that they will use throughout their careers in automotive technology.
Value for Instructors
This system makes it easy for instructors to demonstrate key concepts in automotive HVAC technology. By using a fully operational system with real automotive components, instructors can provide students with authentic, real-world experience. The trainer’s interactive features, like the real-time pressure and temperature readings, as well as the ability to detect electrical signals, offer instructors an ideal way to teach diagnostics, system repair, and troubleshooting.
Specifications
- Dimensions: 1500×1000×1700mm (L×W×H)
- Power Supply: AC 220V±10%, 50Hz
- Operating Voltage: DC 12V
- Refrigerant: R134a
- Operating Temperature: -40℃ ~ +50℃
- Motor Type: Asynchronous Motor, 2.2KW, 1420rpm
- Panel Cabinet Material: 1.5mm cold plate, stamped and formed
- Mobile Casters: 120×80mm for easy mobility
Why Choose Richter’s Automotive Trainers?
At Richter, we design and manufacture cutting-edge automotive training equipment to meet the evolving needs of the automotive industry. Our products, including the Automotive Automatic Air Conditioning System Trainer, are built with both durability and innovation in mind, ensuring that students and educators alike have the best tools available for developing the technical skills necessary in today’s automotive world.
Partnering with leading automotive manufacturers and educational institutions, we bring real-world technology into the classroom, creating a more hands-on, immersive learning experience. Whether you’re looking to teach basic systems or advanced diagnostics, Richter’s training solutions will help bridge the gap between theoretical knowledge and practical skills.
Optional Equipment (Sold Separately):
- TXB BIKE TEXA Diagnostic Scan Tool
- TEXA Uniprobe Diagnostic Oscilloscope
- Automotive Diagnostics Kit ADK5004D TiePie Oscilloscope
- Foxwell Oscilloscope OS100
Contact us to learn more about how Richter can support your educational programs with the best in automotive and electric vehicle training tools!
