Key Features
Fully Operational EPS System:

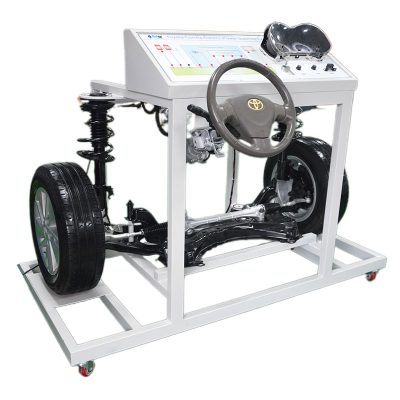

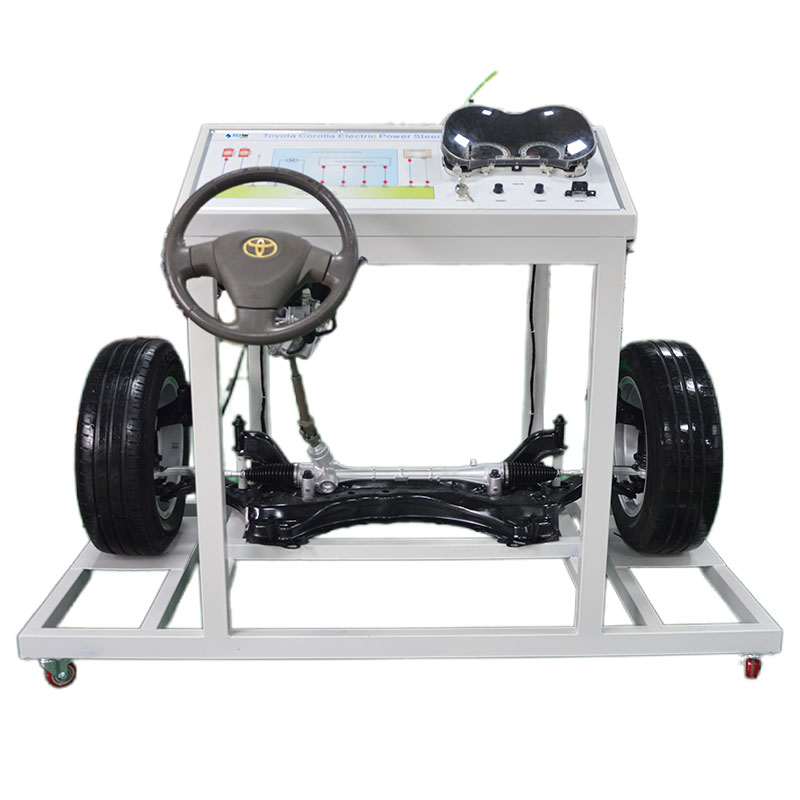

The trainer utilizes a genuine electronic power steering system, showcasing the full composition and structure of modern EPS technology. Students can interact directly with the system to understand its working process in detail.Speed and Vehicle Output Simulation:
Adjust the engine and vehicle speed using a simulation knob, replicating the effects of changing vehicle speeds. This feature allows learners to observe how the EPS system adapts to varying driving conditions.Comprehensive Training Panel:
The training bench features a 4mm-thick anti-corrosion, fireproof, and moisture-proof aluminum-plastic panel. It is marked with clear, colorfast circuit diagrams, enabling students to easily compare real components with theoretical schematics, aiding in a deeper understanding of the system’s function.Electrical Signal Monitoring:
Equipped with detection terminals, this trainer allows students to directly measure electrical signals such as resistance, voltage, current, and frequency within the EPS system. This hands-on measurement helps learners grasp the electrical aspects of the steering system.Integrated Diagnostic Features:
The system includes a diagnostic seat where students can connect a specialized or general vehicle scanner to read fault codes, clear them, and perform other diagnostic functions. This feature is crucial for understanding fault detection and system troubleshooting.Sturdy, Mobile Design:
The training bench is built on a robust steel frame, providing stability and durability. It is equipped with self-locking casters, making it easy to move and securely set up in any classroom or workshop.
Value for Students
Students will engage directly with a real-world EPS system, enhancing their ability to diagnose and repair power steering issues. By simulating faults and using diagnostic tools, they can develop troubleshooting skills in a controlled environment. The interactive nature of the trainer fosters both theoretical understanding and practical problem-solving.
Value for Instructors
For educators, the EPS System Trainer is an invaluable tool for demonstrating key concepts of automotive electrical systems and diagnostics. The clear labeling and real-time monitoring features allow instructors to facilitate engaging lessons, while the diagnostic capabilities enable them to teach students how to perform complex fault analysis. The mobile and durable design ensures it can be easily integrated into various training setups.
Technical Specifications
- Overall Dimensions: 1700×1200×1800 mm (L×W×H)
- Input Power Supply: AC 220V ±10%, 50Hz
- Operating Power Supply: Original vehicle power voltage
- Operating Temperature: -40℃ ~ +50℃
- Steel Tubing: 60×40×3 mm
- Mobile Casters: 100×50 mm
- Panel Cabinet: 1.5 mm cold-plate stamped and formed
Optional Accessories (Sold Separately)
- Volkswagen Steering System
- Toyota Steering System
Why Choose Richter’s EPS System Trainer?
Richter is committed to providing top-tier training equipment designed with input from leading automotive manufacturers and educational institutions. Our Electric Power Steering System Trainer is a prime example of this commitment, offering an intuitive, hands-on approach to teaching the principles of automotive electronics and steering systems. Whether you are preparing students for a career in automotive technology or upgrading your training programs, our product provides the tools necessary to excel in today’s evolving automotive industry.
