Richter’s innovative Electric Vehicle Controller Detection and Disassembly System—a cutting‐edge training tool designed for educational institutions and repair centers striving to elevate skills in electric vehicle and automotive electronics. As part of our Electronic Control System Trainer series, this system offers an immersive, hands-on experience that prepares students and professionals for today’s evolving automotive industry.
Advanced Design and Functionality

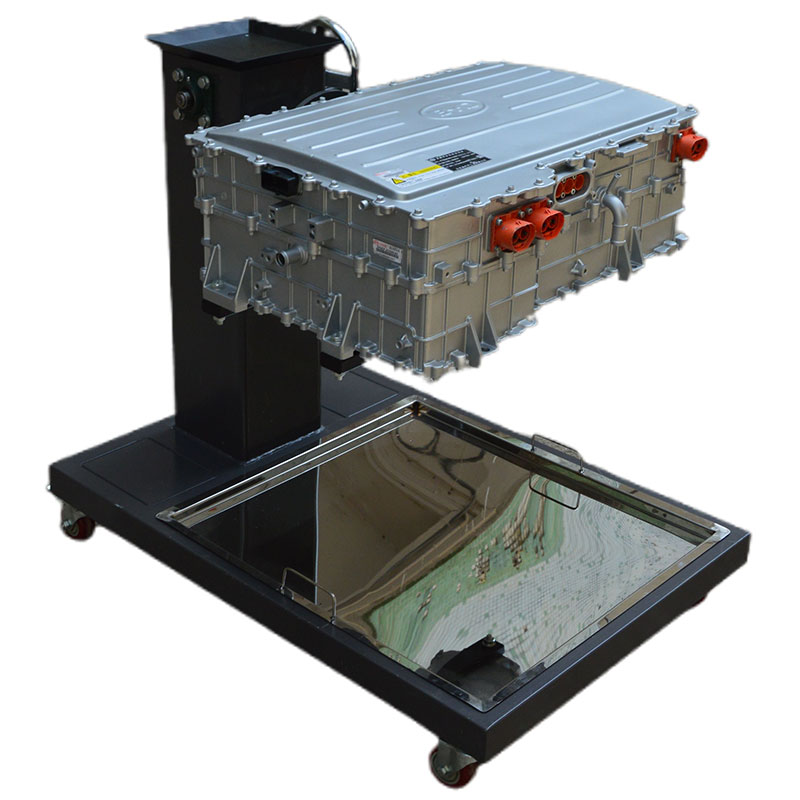

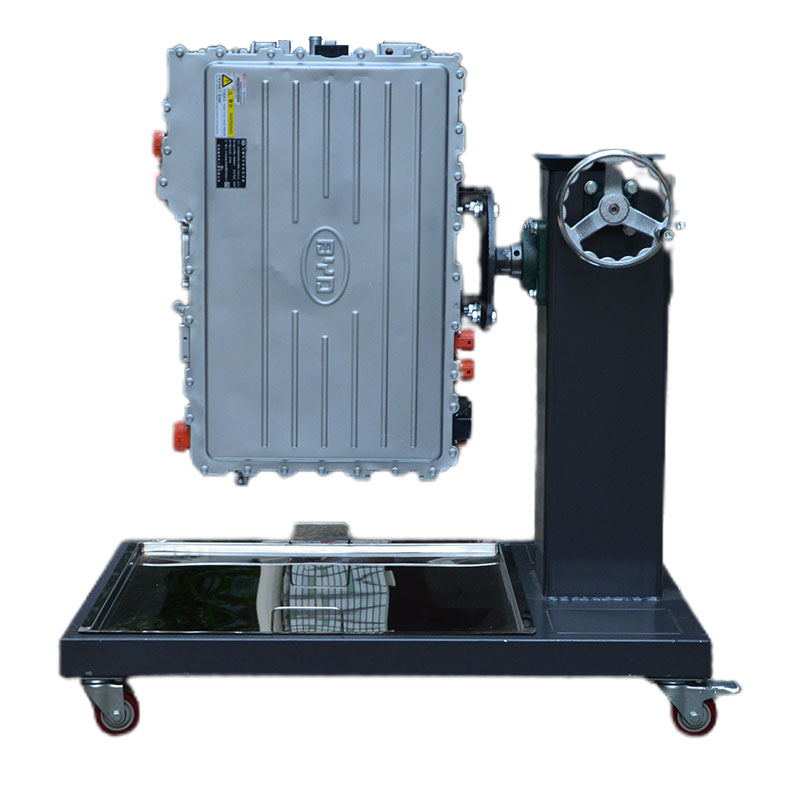

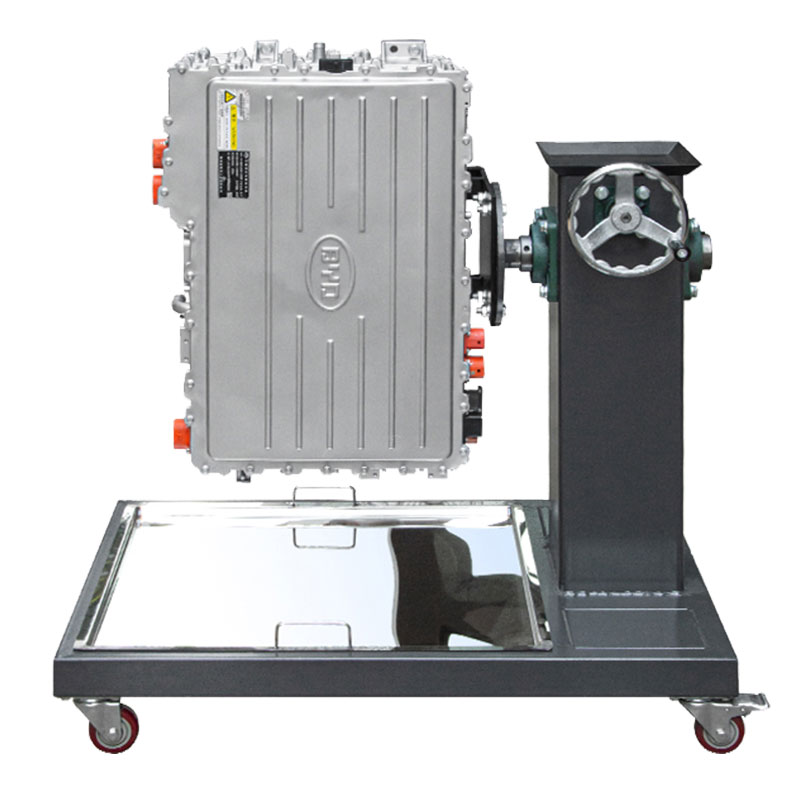

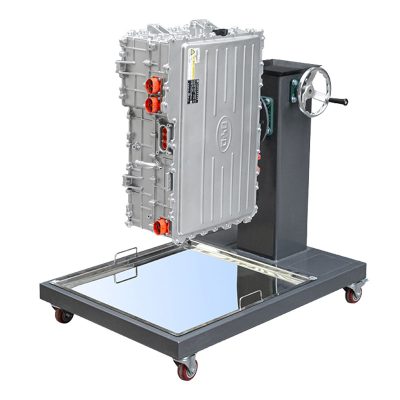

Our Electric Vehicle Controller features a three-in-one new energy vehicle controller assembly with all necessary accessories included. The unique design is mounted on a specially engineered turnover frame that uses a deceleration turnover mechanism, allowing the transmission to rotate freely to any angle and securely lock in place. This dynamic setup enables students to disassemble and reassemble components from multiple perspectives, deepening their understanding of controller systems and troubleshooting techniques.
Key design features include:
- 360° Accessibility: The adjustable turnover frame allows comprehensive viewing and disassembly from various angles.
- Efficient Storage: An integrated oil pan at the base serves as a centralized storage solution for small parts and screws.
- Robust Construction: Crafted from high-strength steel with a welded structure and advanced spray surface treatment, ensuring long-lasting durability and reliability in demanding training environments.
- Enhanced Mobility: Equipped with self-locking swivel casters—two at the front with a locking function and two at the rear—the system can be easily moved and secured for optimal teaching conditions.
Technical Specifications
- Equipment Dimensions: 1000 × 600 × 1100 mm (L×W×H)
- Frame Material: Steel tube 60403 mm
- Swivel Casters:
- Two front casters with locking function
- Two rear swivel casters, secured with M6*4 screws for straightforward maintenance and repair
- Caster dimensions: 60 mm × 50 mm (Diameter × Width)
- Reducer: MOPA70; 1:70
This precise engineering is designed to support major electric vehicle control systems, including BAIC Electronic Control System and BYD Electric Control System, ensuring a real-world, practical experience for trainees.
Enhancing Learning and Teaching Experiences
For Students
- Hands-On Training: Gain practical experience by disassembling and reassembling a fully integrated controller assembly.
- Interactive Learning: Observe the impact of component adjustments and fault simulation in real time, reinforcing theoretical concepts.
- Skill Development: Improve diagnostic abilities and technical troubleshooting with live demonstrations using the turnover frame and integrated storage features.
For Instructors
- Efficient Demonstration: Use the adjustable, plug-and-play design to quickly set up demonstrations that cover intricate details of electric vehicle controllers.
- Real-World Application: Leverage OEM-quality components to mirror industry-standard practices, ensuring that training is both realistic and applicable.
- Versatility in Teaching: The system’s mobility and clear control panel facilitate concurrent use by multiple students, promoting collaborative learning and interactive training sessions.
