Key Features

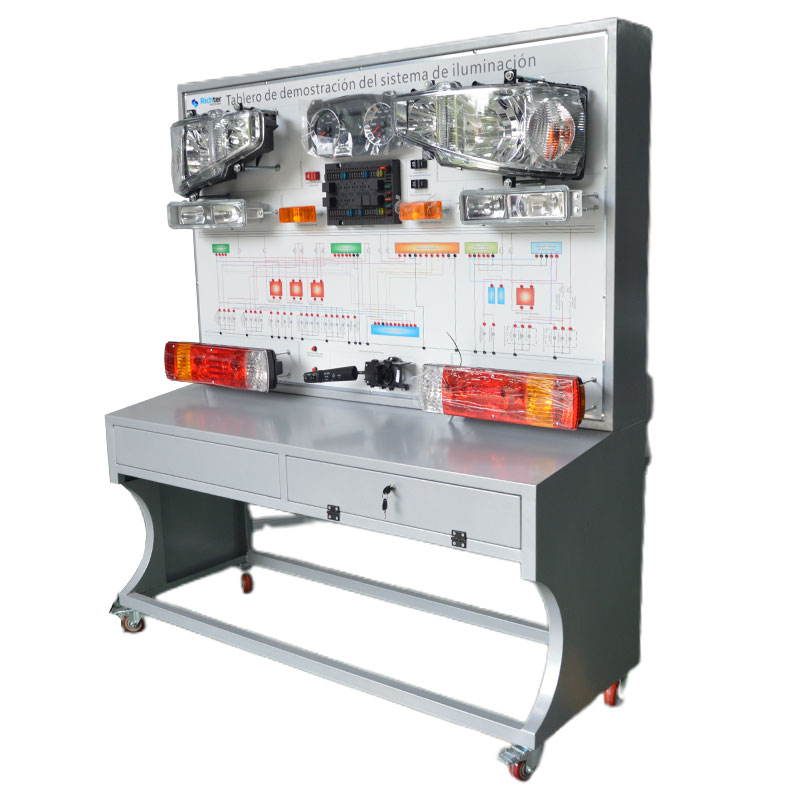

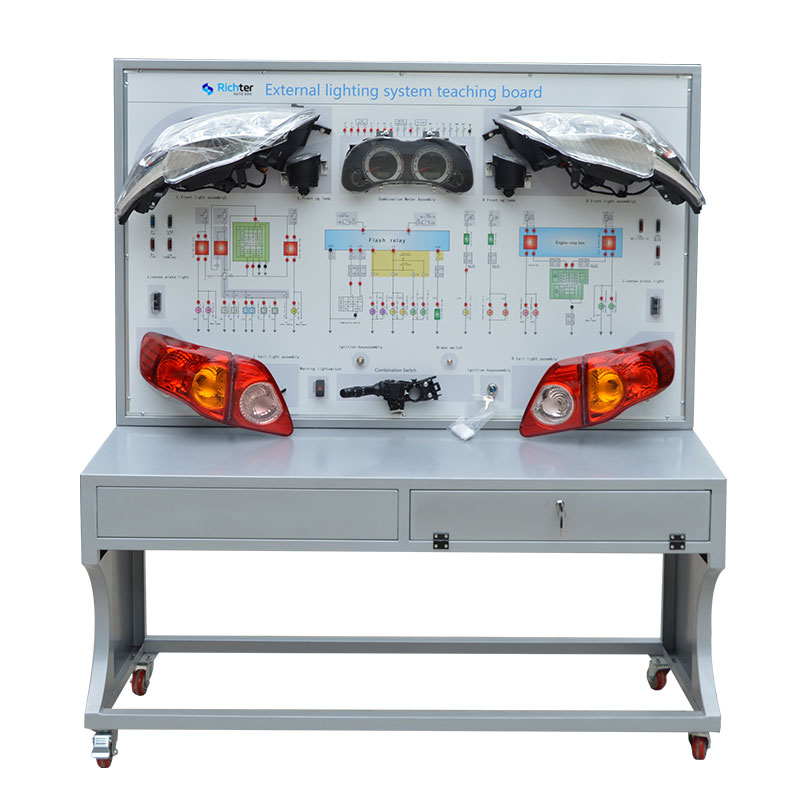

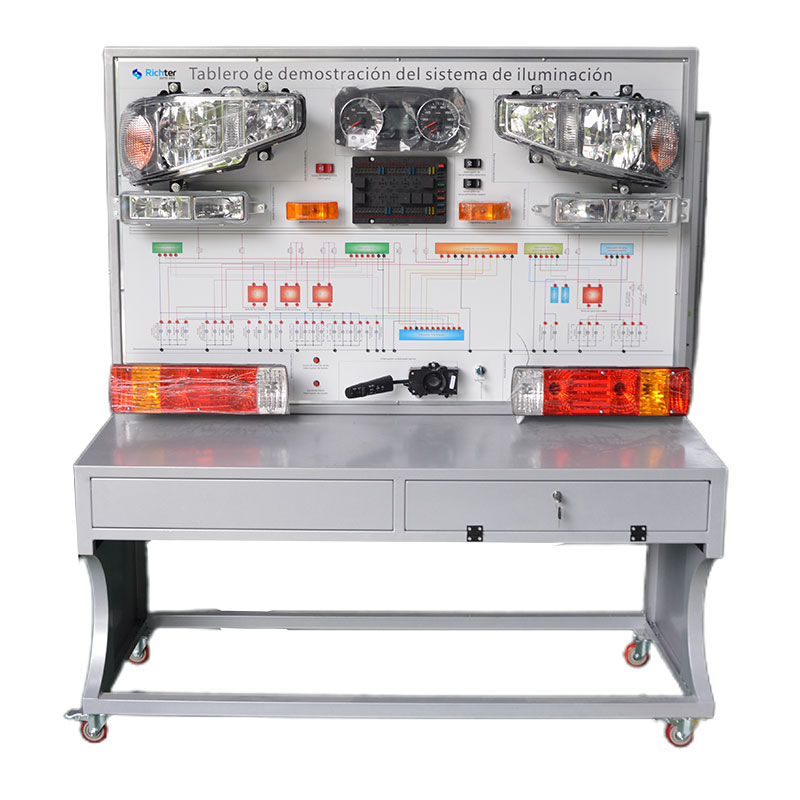

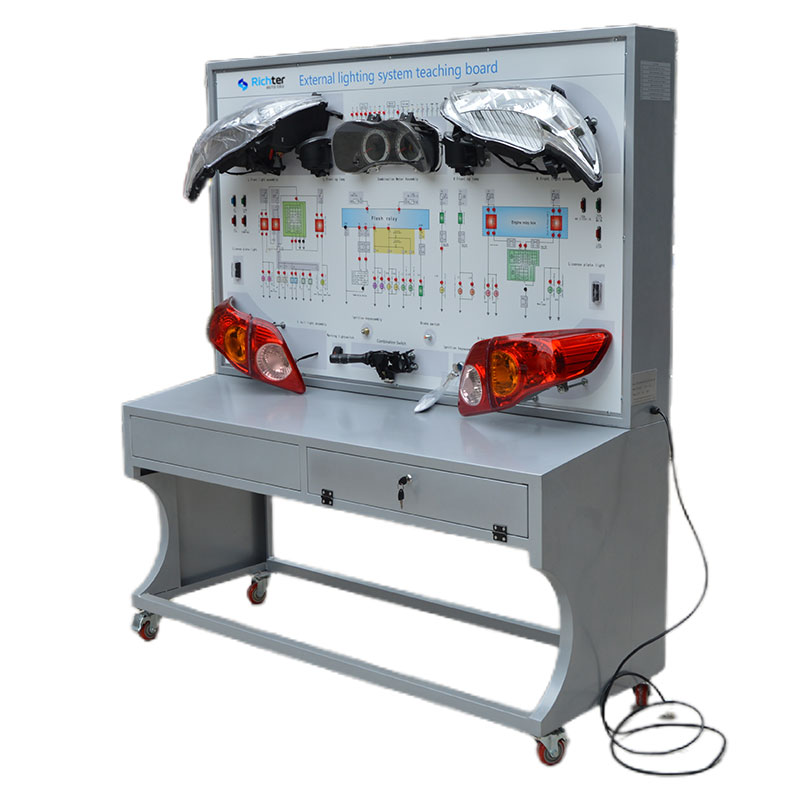

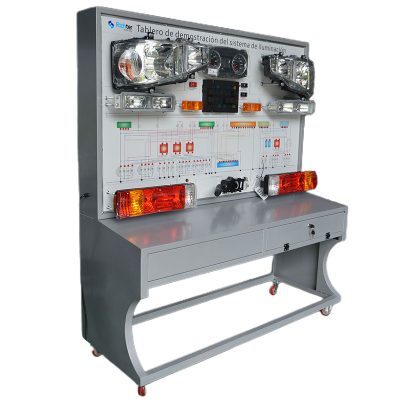

Realistic Vehicle Lighting System: This training board accurately represents the exterior lighting system of a vehicle, with fully functional components. Students can operate various light switches to observe the actual working processes of the vehicle’s lighting system, providing a real-world learning experience.
Durable and Safe Construction: The teaching board panel is constructed with advanced aluminum-plastic material, which is highly resistant to impact, pollution, fire, and moisture. Its special spray-coated surface ensures long-lasting performance, while providing a clear, intuitive comparison between real objects and circuit diagrams for easy analysis.
Integrated Measurement Terminals: The training board is equipped with detection terminals that allow for the direct measurement of electrical signals such as resistance, voltage, current, and frequency signals. This functionality enables students to engage in practical troubleshooting and system analysis, further enhancing their hands-on skills.
Durable, Mobile Design: The educational demonstration board is supported by a sturdy steel structure with a 1.5mm cold-plate stamped body. The base is fitted with lockable casters for easy mobility, allowing for smooth setup and repositioning within classroom or training environments. Additionally, a 40cm tabletop is provided for placing tools, instruments, and data.
User-Friendly Power Supply: The training board operates on standard 220V AC power, which is internally converted into 12V DC power. This eliminates the need for batteries and reduces the hassle of charging. The 12V DC system also includes short circuit protection for added safety during use.
Technical Specifications
- Overall Dimensions: 1240 × 600 × 1700 mm (L × W × H)
- Power Supply: AC 220V ± 10% 50Hz (converted to 12V DC)
- Operating Voltage: 12V DC
- Operating Temperature Range: -40℃ to +50℃
- Construction: 60×40×3mm steel tube frame, 1.5mm cold plate stamped structure
- Mobile Casters: 100×60mm lockable casters for easy movement
Applications
- Educational Institutions: Perfect for use in automotive training centers, vocational schools, and universities. The board serves as an essential tool for both theoretical learning and practical maintenance training.
- Hands-on Training: Provides students with the opportunity to practice diagnosing, repairing, and understanding the vehicle’s exterior lighting system in a safe, controlled environment.
- Industry Applications: Invaluable for automotive repair shops and technicians to familiarize themselves with lighting systems, enhancing their diagnostic and repair skills.
Optional Equipment (Sold Separately)
- Volkswagen Lighting System Demonstration Board

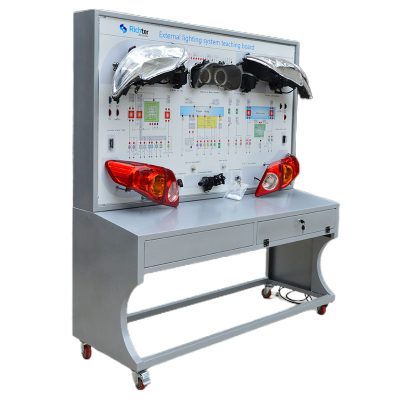

- Corolla Lighting System Teaching Board
Benefits for Students and Instructors
For students, the External Lighting System Training Board offers an immersive, interactive learning experience. By working directly with a real-world system, students can develop practical skills and gain a comprehensive understanding of automotive lighting mechanics, system diagnostics, and troubleshooting techniques.
For instructors, this training board provides a versatile, easy-to-use teaching tool that simplifies the explanation of complex automotive lighting systems. It encourages active learning and helps students develop the technical skills needed for careers in automotive repair and diagnostics.
