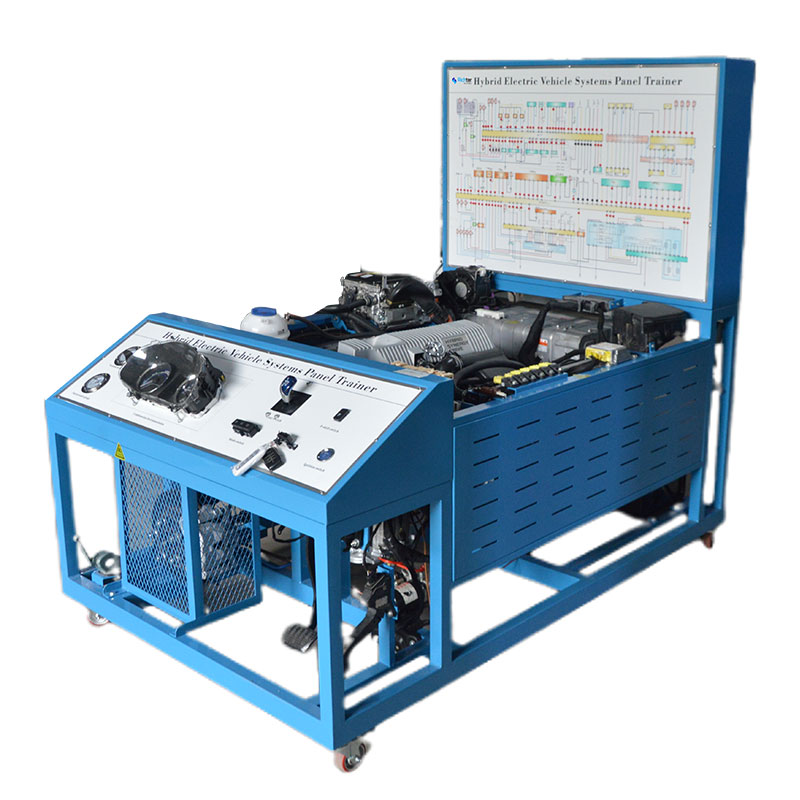

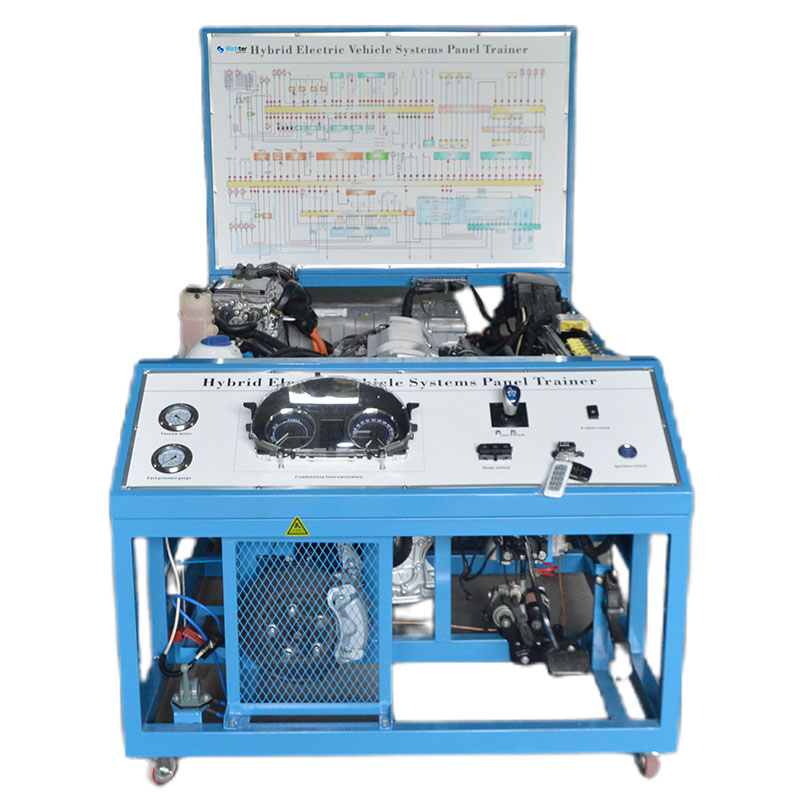

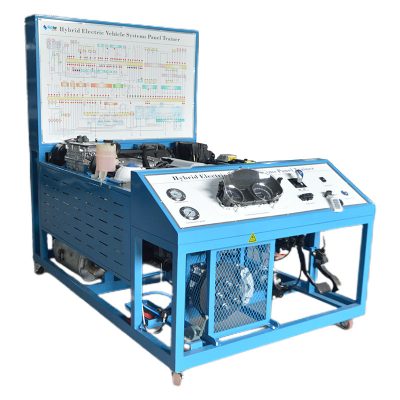

Our Hybrid Power System Trainer is built on an authentic fuel-electric hybrid engine and electronic transmission axle. This hands-on system allows trainees to simulate and observe critical engine operations—including starting, acceleration, and deceleration—providing an in-depth look at the intricate structure and working process of hybrid engines. With this trainer, students gain a practical understanding of how traditional fuel systems integrate with modern electric components.
Advanced Functional Features
Richter’s trainer is designed to meet the highest industry standards while offering user-friendly operation:
Interactive Display & Instrumentation:
The integrated panel features a robust multi-function display screen and automotive instrument cluster that provide real-time monitoring of power transmission, vehicle speed, and electronic control parameters.Durable, High-Quality Training Platform:
Constructed with a 4mm-thick aluminum-plastic plate, the panel is resistant to corrosion, impact, pollution, fire, and moisture. A specially treated primer and colorfast circuit diagrams ensure clear, lasting visibility, enabling trainees to correlate the schematic with the actual engine components.Comprehensive Diagnostic Capabilities:
A dedicated detection terminal captures electrical signals—including resistance, voltage, current, and frequency—from various sensors, actuators, and control units. An integrated diagnosis seat supports connection with vehicle decoders to read and clear fault codes, ensuring a full spectrum of self-diagnostic functions for the engine, automatic transmission, and hybrid power unit.Enhanced Practical Training Tools:
Equipped with a throttle control device, the trainer allows precise adjustments for acceleration and deceleration. Additional features include a 20cm steel platform for data or instrument placement, as well as essential safety devices like main power switches and protective covers for water tanks and flywheels.Robust and Mobile Design:
The trainer’s steel structure, reinforced with a self-locking caster system, guarantees flexibility and safety. Its durable construction is further enhanced by a high-quality spraying process, ensuring long-term performance even under demanding training environments.
Technical Specifications at a Glance
- Overall Dimensions: 1740 x 1400 x 1700 mm (L x W x H)
- Power Supply: DC 12V
- Fuel Tank Capacity: 10L (Fuel grade as per engine model)
- Operating Temperature: -40℃ to +50℃
- Construction Materials:
- Steel Tube: 60 x 40 x 3 mm
- Panel Cabinet: 1.5mm cold plate, stamped and formed
- Mobile Casters: 120 x 80 mm
Empowering Educators and Trainees
At Richter, we are committed to transforming automotive education. Our Hybrid Power System Trainers are designed with both students and instructors in mind:
For Trainees:
Gain hands-on experience with a fully operational hybrid engine system, learn to diagnose faults, and understand the dynamics of modern vehicle propulsion.For Instructors:
Deliver immersive, practical training sessions with equipment that mirrors real-world automotive systems. Simplify lesson preparation and engage students with a system that is both robust and easy to operate.
